- Applicable Materials:
iron ore, slag, copper ore, silver ore, galena, etc.

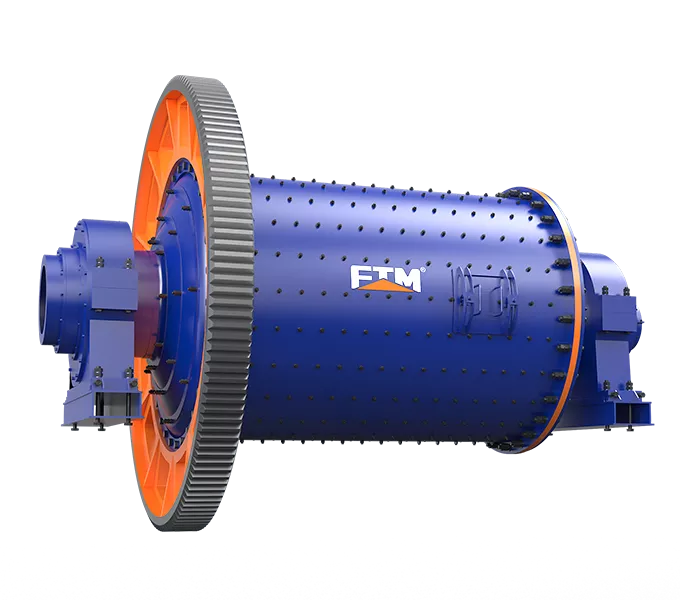

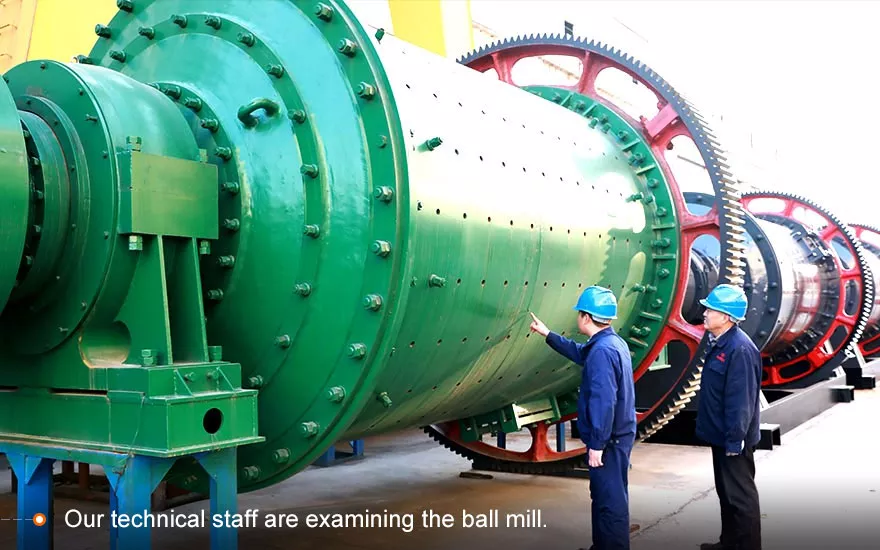

Structure
The ball mill is mainly composed of a feeder, a discharging port, a turning device, transmitting devices that include a reduction gear, a small transmitting gear, a motor, and the electric control. The hollow shaft is made of cast steel so that the inner lining can be replaced. The rotary large gear is processed with the casting hob, and the barrel is equipped with wear-resistant lining, improving its wear resistance.
Working principle

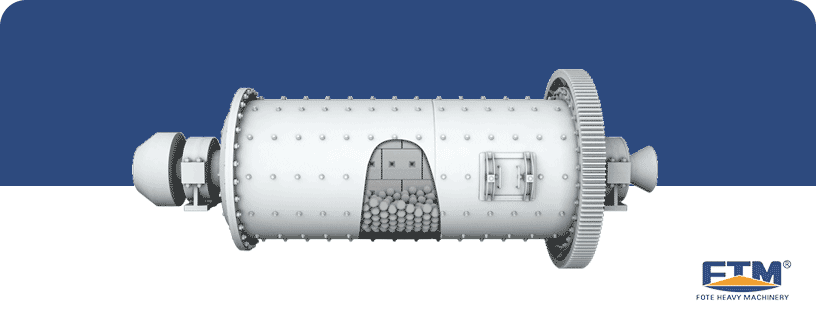

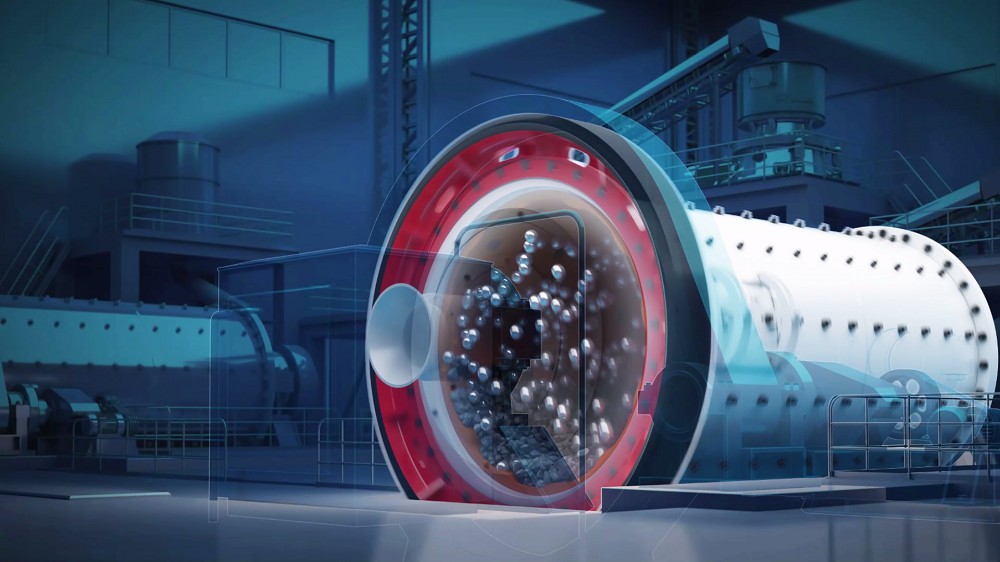

The material is uniformly fed into the first bin by the feeder through the hollow shaft. With a step or corrugated lining, the bin is filled with steel balls of different specifications. The cylinder generates centrifugal force by rotating and brings steel balls to a certain height and then throws them down , causing heavy impacting and grinding force on the material. After coarse grinding, the material enters the second warehouse through a single-layer compartment board. The warehouse is equipped with a flat lining plate also with steel balls to further grind the material. The powder is finally discharged from the mill through the baffle to complete the operation.
Characteristics
-
Reasonable outlet design
The outlet is designed to be flexible so that users can choose a right iron remover according to their needs.
-
Large feeding port
Thanks to the larger feeding port, the machine has improved feeding capacity and producing efficiency.
-
high-quality components
Most of the components are made of high-quality materials such as the cylinder, the lining, the grinding medium, the compartment board, and the discharge raft.
-
Advanced technology
It adopts the hydraulic system for easy operation and automation.
-
Energy-saving and Eco-friendly
The machine produces less dust pollution and greater mute effect by adopting the closed system, in agreement with national requirements for environmental protection.
Classification
According to structure, fineness, the production methods and the materials, FTM’s ball mill incldes the ultra-fine ball mill, the ultra-fine mill,the rod mill, the white ash ball mill, the bush ball mill, the bearing ball mill, the cement ball mill, vertical ball mill, dry ball mill, overflow ball mill, mine ball mill, limestone ball mill, drum ball mill, etc, among which the rod mill, the ball mill and the ceramic ball mill are same in appearance and function but differ in the grinding medium loaded in the barrel.Their difference is as follows：
| Product | Ball Mill | Rod Mill | Ceramic Mill |
| Grinding Medium | Steel Ball | Steel Rod | Ceramic Ball |
price
The ball mill developed by FTM Machinery is priced reasonably. Compared with other mills of the same quality, our ball mill is greatly discounted.
There are three ways for customers to inquire about the detailed price, that is, by contacting us through the hotline or our online customer service at the bottom of the page or by leaving a message at the message system. All customers are welcome to consult online or visit our factory for a purchase at any time.

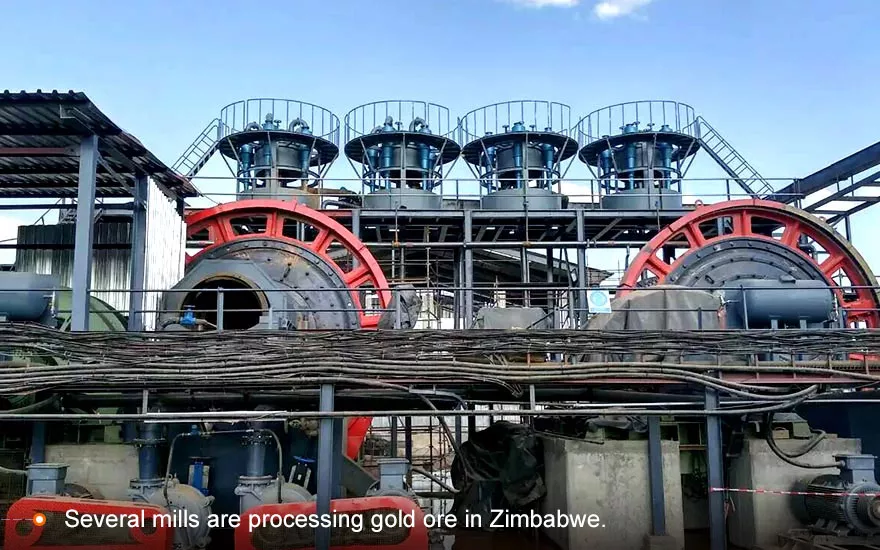

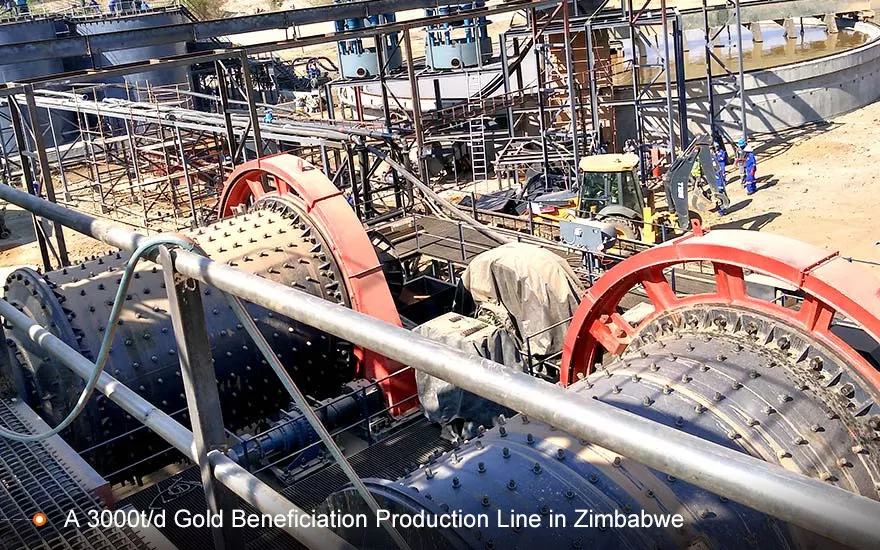

case
- The production line of copper ore beneficiation in Iran
- copper ore
- Capacity: 750 t/h
- In the actual production process, this beneficiation production line is very stable and safe in operation. It has high processing efficiency and a favorable price. More importantly, FTM’s staff have patiently answered all of our questions and tried their best to meet all our requirements of our company.
Specifications
- Ball Mill
- Rod Mill
- Ceramic Ball Mill
| Model | Shell rotation speed （r/min） |
Ball load (t) |
Feeding size (mm) |
Discharging size (mm) |
Capacity (t/h) |
Motor power (kw) |
Total weight (t) |
| Ф900×1800 | 36-38 | 1.5 | <20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.85 |
| Ф900×3000 | 36 | 2.7 | <20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.98 |
| Ф1200×2400 | 36 | 3 | <25 | 0.075-0.6 | 1.5-4.8 | 30 | 13.6 |
| Ф1200×3000 | 36 | 3.5 | <25 | 0.074-0.4 | 1.6-5 | 37 | 14.3 |
| Ф1200×4500 | 32.4 | 5 | <25 | 0.074-0.4 | 1.6-5.8 | 55 | 15.6 |
| Ф1500×3000 | 29.7 | 7.5 | <25 | 0.074-0.4 | 2-5 | 75 | 19.5 |
| Ф1500×4500 | 27 | 11 | <25 | 0.074-0.4 | 3-6 | 110 | 22 |
| Ф1500×5700 | 28 | 12 | <25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 |
| Ф1830×3000 | 25.4 | 11 | <25 | 0.074-0.4 | 4-10 | 130 | 34.5 |
| Ф1830×4500 | 25.4 | 15 | <25 | 0.074-0.4 | 4.5-12 | 155 | 38 |
| Ф1830×6400 | 24.1 | 21 | <25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
| Ф1830×7000 | 24.1 | 23 | <25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
| Ф2100×3000 | 23.7 | 15 | <25 | 0.074-0.4 | 6.5-36 | 155 | 45 |
| Ф2100×4500 | 23.7 | 24 | <25 | 0.074-0.4 | 8-43 | 245 | 56 |
| Ф2100×7000 | 23.7 | 26 | <25 | 0.074-0.4 | 12-48 | 280 | 59.5 |
| Ф2200×4500 | 21.5 | 27 | <25 | 0.074-0.4 | 9-45 | 280 | 54.5 |
| Ф2200×6500 | 21.7 | 35 | <25 | 0.074-0.4 | 14-26 | 380 | 61 |
| Ф2200×7000 | 21.7 | 35 | <25 | 0.074-0.4 | 15-28 | 380 | 62.5 |
| Ф2200×7500 | 21.7 | 35 | <25 | 0.074-0.4 | 15-30 | 380 | 64.8 |
| Ф2400×3000 | 21 | 23 | <25 | 0.074-0.4 | 7-50 | 245 | 58 |
| Ф2400×4500 | 21 | 30 | <25 | 0.074-0.4 | 8.5-60 | 320 | 72 |
| Ф2700×4000 | 20.7 | 40 | <25 | 0.074-0.4 | 22-80 | 380 | 95 |
| Ф2700×4500 | 20.7 | 48 | <25 | 0.074-0.4 | 26-90 | 480 | 102 |
| Ф3200×4500 | 18 | 65 | <25 | 0.074-0.4 | As per process conditions | 630 | 149 |
| Ф3600×4500 | 17 | 90 | <25 | 0.074-0.4 | As per process conditions | 850 | 169 |
| Ф3600×6000 | 17 | 110 | <25 | 0.074-0.4 | As per process conditions | 1250 | 198 |
| Ф3600×8500 | 18 | 131 | <25 | 0.074-0.4 | 45.8-256 | 1800 | 260 |
| Ф4000×5000 | 16.9 | 121 | <25 | 0.074-0.4 | 45-208 | 1500 | 230 |
| Ф4000×6000 | 16.9 | 146 | <25 | 0.074-0.4 | 65-248 | 1600 | 242 |
| Ф4000×6700 | 16.9 | 149 | <25 | 0.074-0.4 | 75-252 | 1800 | 249 |
| Ф4500×6400 | 15.6 | 172 | <25 | 0.074-0.4 | 84-306 | 2000 | 280 |
| Ф5030×6400 | 14.4 | 216 | <25 | 0.074-0.4 | 98-386 | 2500 | 320 |
| Ф5030×8300 | 14.4 | 266 | <25 | 0.074-0.4 | 118-500 | 3300 | 403 |
| Ф5500×8500 | 13.8 | 338 | <25 | 0.074-0.4 | 148-615 | 4500 | 525 |
| Model |
Shell Specifications
(mm) |
Shell rotation speed （r/min） |
Feeding size (mm) |
Discharging size (mm) |
Processing capacity (t/h) |
Power (kw) |
Total weight (t) |
|
| Diameter | Length | |||||||
| MBS0918 | 900 | 1800 | 36-38 | ≤25 | 0.833-0.147 | 0.62-3.2 | 18.5 | 5.9 |
| MBS0924 | 900 | 2400 | 36 | ≤25 | 0.833-0.147 | 0.81-4.3 | 22 | 6.7 |
| MBS1224 | 1200 | 2400 | 36 | ≤25 | 0.833-0.147 | 1.1-4.9 | 30 | 13.9 |
| MBS1530 | 1500 | 3000 | 29.7 | ≤25 | 0.833-0.147 | 2.4-7.5 | 75 | 19.8 |
| MBS1830 | 1830 | 3000 | 25.4 | ≤25 | 0.833-0.147 | 4.8-11.6 | 130 | 34.9 |
| MBS2130 | 2100 | 3000 | 23.7 | ≤25 | 0.833-0.147 | 14-35 | 155 | 46.5 |
| MBS2136 | 2100 | 3600 | 23.7 | ≤25 | 0.833-0.147 | 19-43 | 180 | 48.7 |
| MBS2430 | 2400 | 3000 | 21 | ≤50 | 0.833-0.147 | 25-65 | 245 | 59.7 |
| MBS2736 | 2700 | 3600 | 20.7 | ≤50 | 0.833-0.147 | 32-86 | 380 | 92.5 |
| MBS2740 | 2700 | 4000 | 20.7 | ≤50 | 0.833-0.147 | 32-92 | 400 | 95 |
| MBS3245 | 3200 | 4500 | 18 | ≤50 | 0.833-0.147 | 64-180 | 630 | 149 |
| Model | Feeding capacity （t/time） |
Shell rotation speed （r/min） |
Reference motor （kw） |
Liner material |
| 600×700 | 0.05 | 50 | 2.2 | Chinaware,silicon,rubber or metal（the related motor power varied as per the different liner materials and grinding materials） |
| 800×600 | 0.075 | 42 | 3 | |
| 900×1200 | 0.2 | 38.5 | 5.5 | |
| 1300×1500 | 0.5 | 33 | 7.5 | |
| 1500×1800 | 1.2 | 28.5 | 11 | |
| 1800×2000 | 1.5 | 24 | 15 | |
| 2600×2800 | 5 | 16.5 | 37 | |
| 3000×3800 | 10 | 14.5 | 57.2 | |
| 3200×4600 | 15 | 13.5 | 75 |
