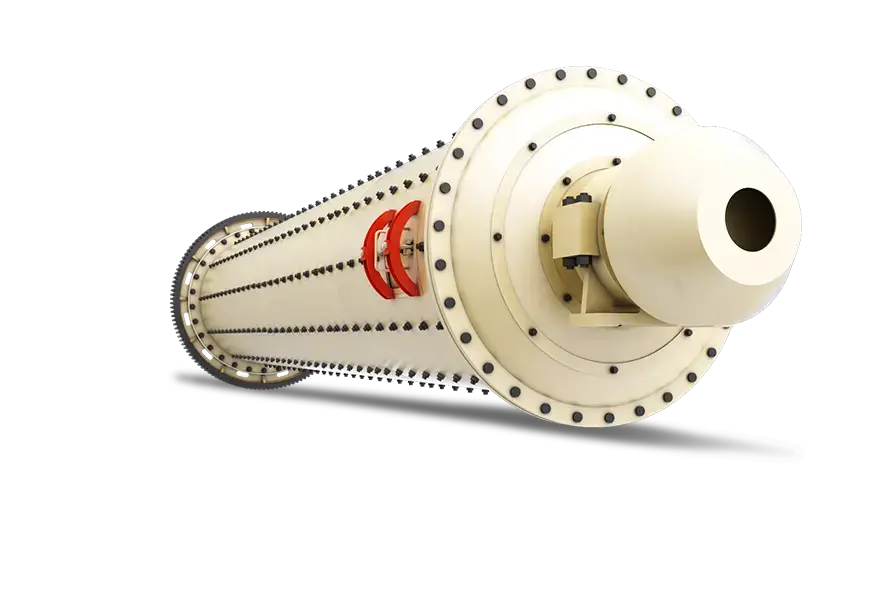

Ball Mill

The ball mill is the most important beneficiation equipment that can grind various ores and other grindable materials.

Capacity 0.65-615t/h

Feeding Size ≤25mm

Email (inquiry@sinoftm.com), we will reply to you within 24 hours

Ball Mill
  • Factory
    direct sale
  • Price concessions
  • Prompt delivery

Overview

According to the material and the way of discharging, users can choose a dry or a wet grid ball mill according to their materials and discharging methods. The wet ball mill is often equipped with a classifier whereas the dry one with a suction and separating device. Compared with the Raymond mill, the ball mill can grind metal ore.

Structure

The ball mill is mainly composed of a feeder, a discharging port, a turning device, transmitting devices that include a reduction gear, a small transmitting gear, a motor, and the electric control. The hollow shaft is made of cast steel so that the inner lining can be replaced. The rotary large gear is processed with the casting hob, and the barrel is equipped with wear-resistant lining, improving its wear resistance.

Applicable Materials

iron ore, slag, copper ore, silver ore, galena, etc.

Working Principle

The material is uniformly fed into the first bin by the feeder through the hollow shaft. With a step or corrugated lining, the bin is filled with steel balls of different specifications. The cylinder generates centrifugal force by rotating and brings steel balls to a certain height and then throws them down , causing heavy impacting and grinding force on the material. After coarse grinding, the material enters the second warehouse through a single-layer compartment board. The warehouse is equipped with a flat lining plate also with steel balls to further grind the material. The powder is finally discharged from the mill through the baffle to complete the operation.

Classification

Fote has produced two types of jaw crushers, i.e., the CJ series European jaw crusher and the HD German Jaw Crusher.

According to structure, fineness, the production methods and the materials, FTM’s ball mill incldes the ultra-fine ball mill, the ultra-fine mill,the rod mill, the white ash ball mill, the bush ball mill, the bearing ball mill, the cement ball mill, vertical ball mill, dry ball mill, overflow ball mill, mine ball mill, limestone ball mill, drum ball mill, etc, among which the rod mill, the ball mill and the ceramic ball mill are same in appearance and function but differ in the grinding medium loaded in the barrel.Their difference is as follows:

Product Ball Mill Rod Mill Ceramic Mill
Grinding Medium Steel Ball Steel Rod Ceramic Ball
7*24h Online

leave message

* Your information willnever be revealed.

Advantages

180 t/h ball mill

The outlet is designed to be flexible so that users can choose a right iron remover according to their needs.

Thanks to the larger feeding port, the machine has improved feeding capacity and producing efficiency.

Most of the components are made of high-quality materials such as the cylinder, the lining, the grinding medium, the compartment board, and the discharge raft.

It adopts the hydraulic system for easy operation and automation.

The machine produces less dust pollution and greater mute effect by adopting the closed system, in agreement with national requirements for environmental protection.

Specifications

  • Ball Mill
  • Rod Mill
  • Ceramic Ball Mill
Model Shell rotation speed
(r/min)
Ball load
(t)
Feeding size
(mm)
Discharging size
(mm)
Capacity
(t/h)
Motor power
(kw)
Total weight
(t)
Ф900×1800 36-38 1.5 <20 0.075-0.89 0.65-2 18.5 5.85
Ф900×3000 36 2.7 <20 0.075-0.89 1.1-3.5 22 6.98
Ф1200×2400 36 3 <25 0.075-0.6 1.5-4.8 30 13.6
Ф1200×3000 36 3.5 <25 0.074-0.4 1.6-5 37 14.3
Ф1200×4500 32.4 5 <25 0.074-0.4 1.6-5.8 55 15.6
Ф1500×3000 29.7 7.5 <25 0.074-0.4 2-5 75 19.5
Ф1500×4500 27 11 <25 0.074-0.4 3-6 110 22
Ф1500×5700 28 12 <25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 <25 0.074-0.4 4-10 130 34.5
Ф1830×4500 25.4 15 <25 0.074-0.4 4.5-12 155 38
Ф1830×6400 24.1 21 <25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 <25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 <25 0.074-0.4 6.5-36 155 45
Ф2100×4500 23.7 24 <25 0.074-0.4 8-43 245 56
Ф2100×7000 23.7 26 <25 0.074-0.4 12-48 280 59.5
Ф2200×4500 21.5 27 <25 0.074-0.4 9-45 280 54.5
Ф2200×6500 21.7 35 <25 0.074-0.4 14-26 380 61
Ф2200×7000 21.7 35 <25 0.074-0.4 15-28 380 62.5
Ф2200×7500 21.7 35 <25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 <25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 <25 0.074-0.4 8.5-60 320 72
Ф2700×4000 20.7 40 <25 0.074-0.4 22-80 380 95
Ф2700×4500 20.7 48 <25 0.074-0.4 26-90 480 102
Ф3200×4500 18 65 <25 0.074-0.4 As per process conditions 630 149
Ф3600×4500 17 90 <25 0.074-0.4 As per process conditions 850 169
Ф3600×6000 17 110 <25 0.074-0.4 As per process conditions 1250 198
Ф3600×8500 18 131 <25 0.074-0.4 45.8-256 1800 260
Ф4000×5000 16.9 121 <25 0.074-0.4 45-208 1500 230
Ф4000×6000 16.9 146 <25 0.074-0.4 65-248 1600 242
Ф4000×6700 16.9 149 <25 0.074-0.4 75-252 1800 249
Ф4500×6400 15.6 172 <25 0.074-0.4 84-306 2000 280
Ф5030×6400 14.4 216 <25 0.074-0.4 98-386 2500 320
Ф5030×8300 14.4 266 <25 0.074-0.4 118-500 3300 403
Ф5500×8500 13.8 338 <25 0.074-0.4 148-615 4500 525
Model
Shell Specifications (mm)
Shell rotation speed
(r/min)
Feeding size
(mm)
Discharging size
(mm)
Processing capacity
(t/h)
Power
(kw)
Total weight
(t)
Diameter Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5

5.9

MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6.7
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 13.9
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 19.8
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 34.9
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 46.5
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 48.7
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 59.7
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 92.5
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 95
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 149
Model Feeding capacity
(t/time)
Shell rotation speed
(r/min)
Reference motor
(kw)
Liner material
600×700 0.05 50 2.2 Chinaware,silicon,rubber or metal(the related motor power varied as per the different liner materials and grinding materials)
800×600 0.075 42 3
900×1200 0.2 38.5 5.5
1300×1500 0.5 33 7.5
1500×1800 1.2 28.5 11
1800×2000 1.5 24 15
2600×2800 5 16.5 37
3000×3800 10 14.5 57.2
3200×4600 15 13.5 75

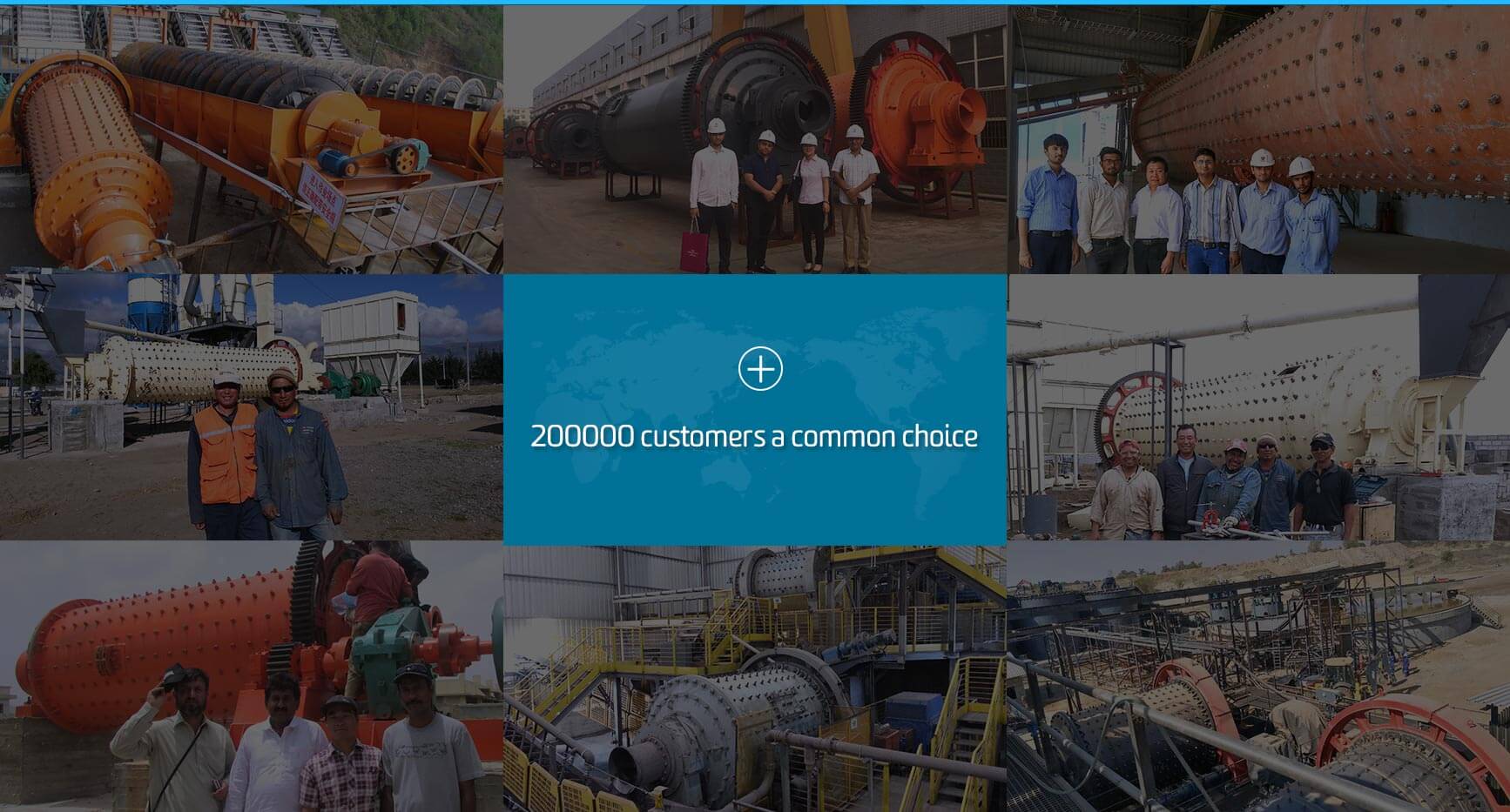

Hot case scene

Customer feedback

  • Dominic

    This ball mill runs stably and safely in the operation with its high efficiency. Also, it can be customized according to our requirements for capacity, which brings a pretax profit to us.

  • Clementine

    Three years ago, we were convinced to make a purchase by the patient introduction and answer from Fote’ s technical manager. Surprisingly, there has been basically no failure since the machine was in use. Not only does it have premium quality and stable operation, but it is also eco-friendly.
