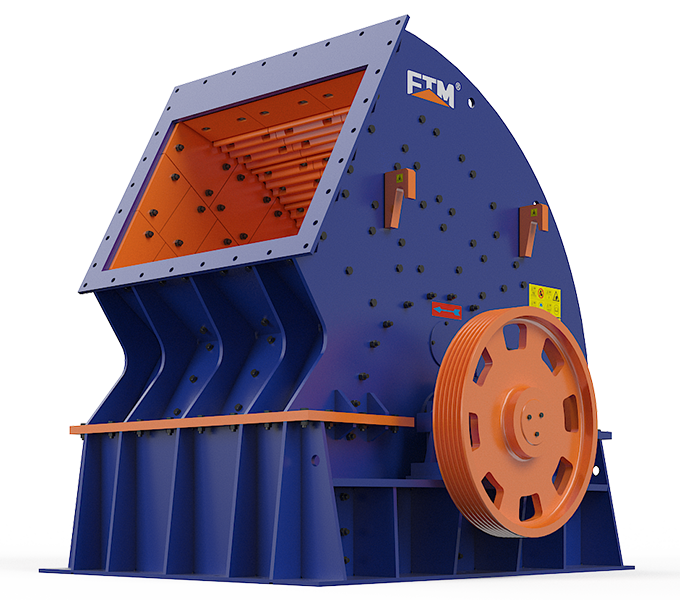

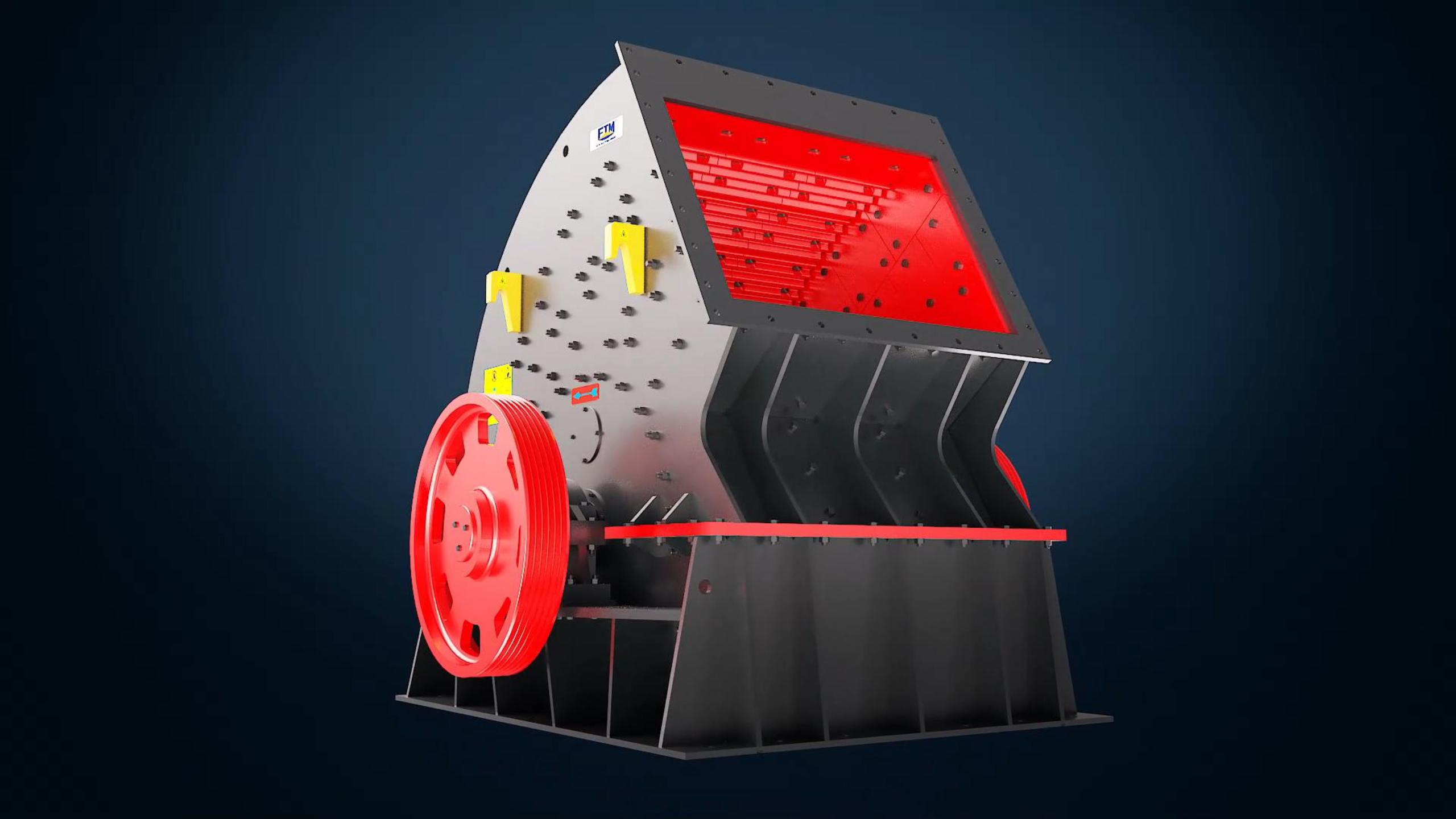

Hammer Crusher
MADE IN CHINA
Direct delivery from many ports, please consult.

Email us ( inquiry@sinoftm.com ) , we will reply to you within 24 hours.

get quote

Overview

The hammer crusher is applicable for both crushing production lines and sand making production lines. Also, it can replace cone crushers for ore beneficiation. It can adjust the discharging size to meet different needs.

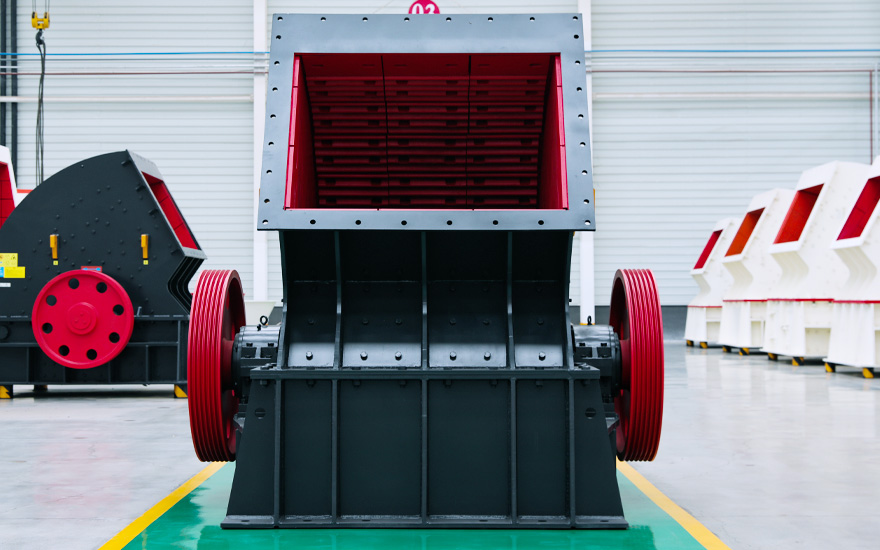

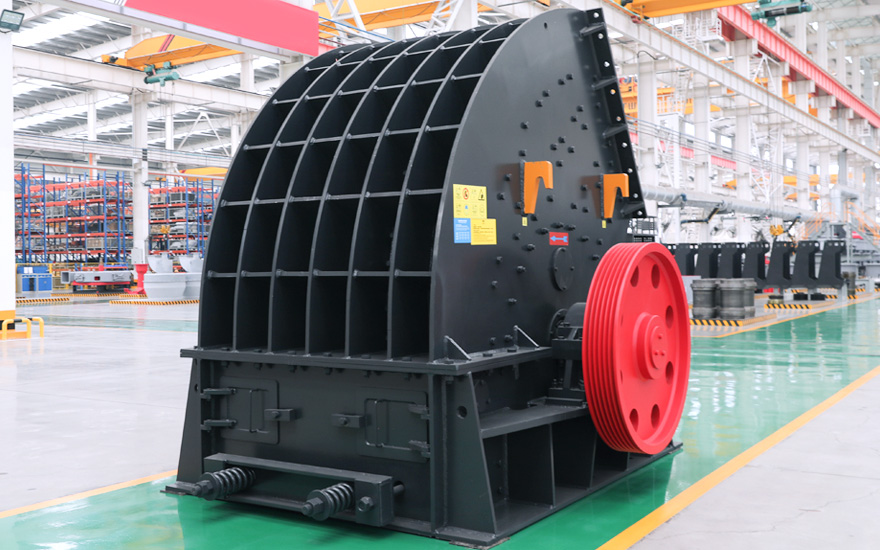

gallery

- Applicable Materials:

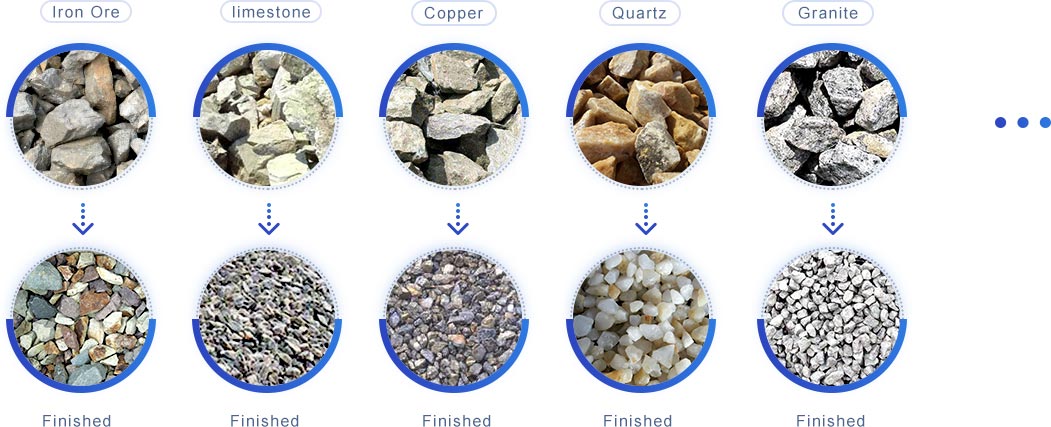

The hammer crusher processes a variety of abrasive materials with medium hardness, whose compressive strength is no more than 100MPa and water content is less than 15%, such as coal, salt, chalk, gypsum, brick, limestone and so on.

How It Works

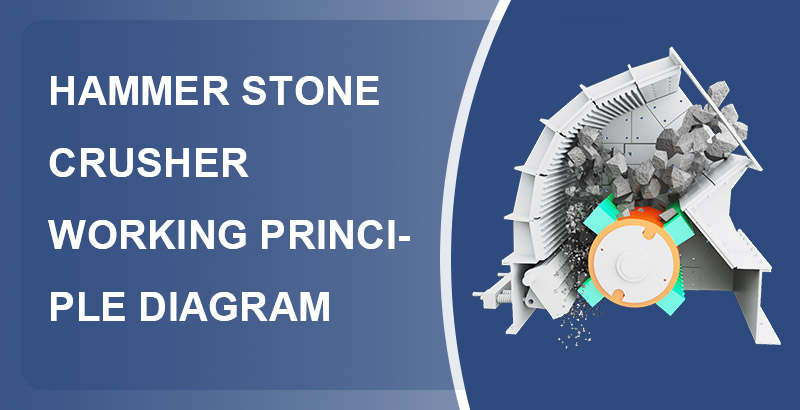

The materials are crushed by the impact of the hammer rotating at a high speed after entering the crusher. Then they rush at a high speed to the baffle inside the frame; thereby colliding with each other. After several times of being crushed, the materials that are smaller than the gap of the screen are discharged from the gap, and the larger ones are crushed again under the impact of the hammer on the sieve. The materials that meet the requirement of particle size are finally squeezed out from the gap by the hammer.

Advantages

  • Compact Structure

    The hammer crusher is sealed to avoid dust pollution in the crushing workshop as well as the leaking of ash on the machine.

  • Adjustable Particle Sizes

    Fote's hammer crusher can adjust the size of finished products according to customers’ requirements.

  • High Wear Resistance

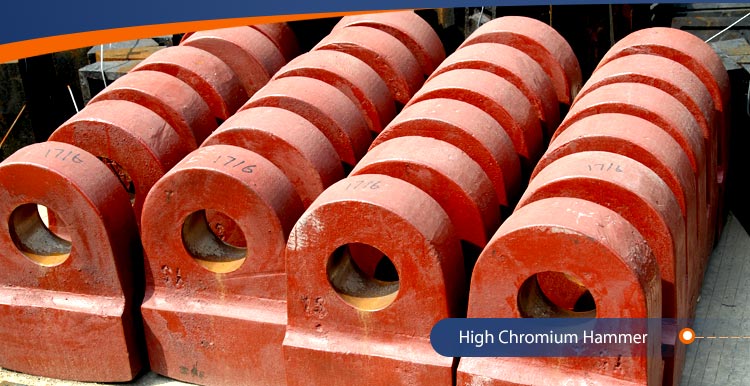

    Fote adopts advanced process flow to cast the high chromium hammer so that our products are highly resistant to wear and impact.

Classification

Fote Heavy Machinery mainly produces two series of hammer crushers, that is, PC hammer crusher and PCZ heavy hammer crusher that is the more advanced type.

PCZ heavy hammer crusher can crush all materials at one time, which avoids cumbersome primary crushing process of the jaw crusher. It is suitable for crushing materials whose compressive strength is below 200Mpa. Moreover, its modular design helps it perform the functions of coarse, medium and fine crushing. Not only do its end products have various specifications, but they are also uniform; thus, the PCZ hammer crusher is an alternative product for traditional jaw crushers and plate hammer crushers.

Notice

The hammer is an essential part of the machine in the production process. Once it is damaged, not only will its performance be deteriorated, but also the crushing efficiency of the crusher will be greatly reduced, thus extremely affecting the overall efficiency. Therefore, before the purchase, customers need to pay more attention to the hammer; in the process of production, you also need to examine the machine regularly. If there is any problem in your production, please contact us as soon as possible. Our service staff will reply your inquiry with professional service within 24h.

price

The price of the hammer crusher varies with models, manufacturing technology and spare parts.

With 40 years of experience, FTM Machinery has been in line with market demands and improved product quality and technology for many times, thus, our hammer crusher has the advantages of low energy consumption and high automaticity. All customers are welcome to consult the latest price online or to visit our factories at any time.

case

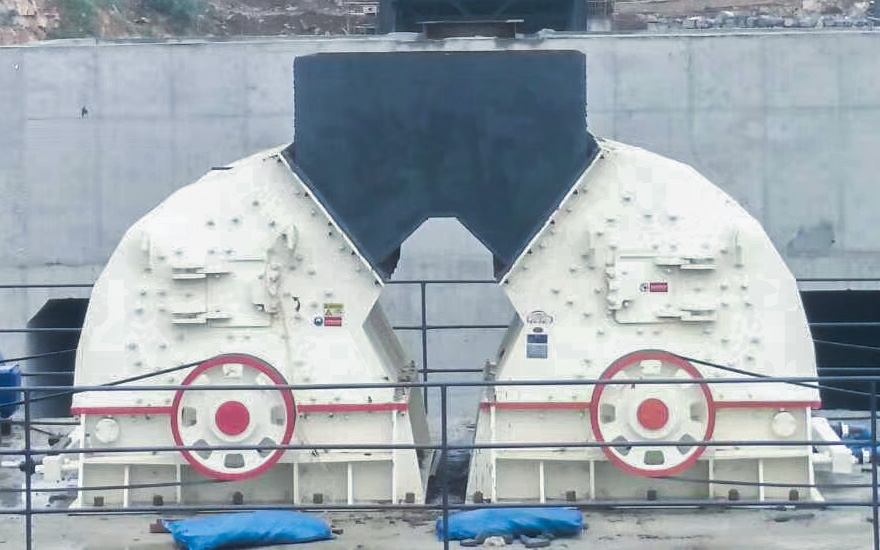

- The quartz crushing production line

quartz
Capacity: 600t/h
- one vibrating feeder - two PCZ heavy hammer crushers -two vibrating screens -some belt conveyors
After much consideration, we decided to purchase a set of crushing machines from FTM Machinery. It has been one and a half years since it was put into production and the line has been running well with high out. More importantly, it solves such problems as large dust, large land occupation and high fineness of the finished product to realize our goals of environment protection and saving energy. We are very satisfied with that and really look forward to more cooperation in the future.

Specifications

  • Hammer Crusher
  • PCZ Heavy Hammer Crusher
Specification Capacity(t/h) Power (kw)
PCΦ400×300 3-10 4P 11
PCΦ600×400 6-22 4P 22
PCΦ800×600 10-40 4P 55
PCΦ1000×800 15-50 4P 75
PCΦ1000×1000 18-55 4P 90

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Rotor diameter×length (mm) Feed Opening Length×width(mm) Feeding Size (mm) Processing Capacity(t/h) Power (kw) Dimensions L×W×H (mm)
PCZ1308 Φ1330×790 870×780 ≤380 60-160 132 2880×2130×2390
PCZ1410 Φ1400×1000 1060×740 ≤450 80-210 2×90(160) 2830×2100×2485
PCZ1610 Φ1600×1000 1090×930 ≤480 100-230 2×132 3370×2415×2750
PCZ1612 Φ1600×1200 1340×1140 ≤500 120-350 2×160 3370×2613×2750
PCZ1615 Φ1600×1500 1570×1140 ≤550 200-550 2×200 3370×2925×2750
PCZ1716 Φ1700×1600 1420×1200 ≤600 400-850 2×250 3520×3000×3210
PCZ1720 Φ1700×2000 2030×1200 ≤650 500-1000 2×400 3670×3390×3330
PCZ1920 Φ1900×2000 1980×1210 ≤750 800-1500 2×500 4490×3910×3600
PCZ2225 Φ2200×2500 2530×1610 ≤1000 1500-3000 1250 4890×5010×4560

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
