Magnetic Separator
MADE IN CHINA
Direct delivery from many ports, please consult.

Email us ( inquiry@sinoftm.com ) , we will reply to you within 24 hours.

get quote

Overview

According to the working modes, the magnetic separator can be divided into the dry magnetic separator and the wet one. Its magnetic system is made of high-quality ferrite material or composited with rare earth magnetic steel. The average magnetic induction intensity of the cylinder is 100-600 mT. According to the needs of users, we can provide you with three types, that is, the downstream type, the semi-backflow type, and the counterflow type.

gallery

- Applicable Materials:

The magnetic separator is suitable for iron magnetite, pyrrhotite, roasting ore and ilmenite, whose particle size is no more than 3 mm.

How it works

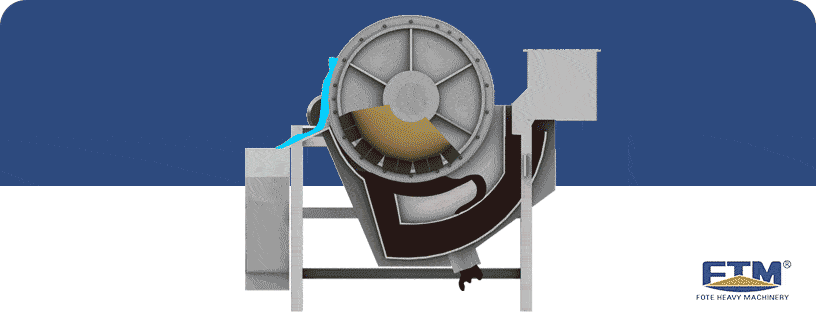

After entering the tank through the ore tank, the slurry is turned into ore particles under the action of the water flow to the mine spout and enters the feeding area of the tank. Due to the magnetic field, the magnetic ore particles are magnetically aggregated to form a "magnet" or "magnetic flux". Subjected to magnetic force in the slurry, it moves toward the magnetic pole and is adsorbed on the surface of the cylinder.When the "magnet" or "magnetic flux" rotates with the cylinder, alternated magnetic poles contribute to the magnetic mixing phenomenon, therby causing non-magnetic minerals such as gangues in the "magnet" or "magnetic flux" to fall off. The "magnet" or "magnetic flux" that is ultimately adsorbed on the surface of the cylinder is the concentrated ore.

Advantages

  • A Wide range of applications

    It can be used for coal mines, foundry sands, refractory materials, and other iron removing operations.

  • High Performance

    High-performance permanent magnets are added to the magnetic structure to ensure that the magnetic property is not lost even under high flow conditions.

  • High Product Quality

    In ceramic industry, it can be used to remove the mixed iron from the porcelain mud, thus improving the quality of ceramic products.

case

- The production line of magnetically separating iron ore

iron ore
Capacity: 150 t/h
- PE-600×900 jaw crusher - two Ф4500×6400 ball mills - a FG-5 spiral classifier - three CTB9021 magnetic separators - a NZS-12 concentrator - three Φ3.2×25 dryers
FTM Machinery sent their technical engineers to our factory for on-the-spot investigation, designing and configuring a complete production line for us. They were very responsible for the on-site installation and commissioning of the entire project. We have already used them for two years, and there are few failures. More importantly, the production line has high output and low cost.

Specifications

Model Shell diameter
(mm)
Shell lenght
(mm)
Shell rotation
speed(r/min)
Feeding size
(mm)
Processing capacoty
(t/h)
Power(kw)
CTB6012 600 1200 <35 2-0 10-20 1.5
CTB6018 600 1800 <35 2-0 15-30 2.2
CTB7518 750 1800 <35 2-0 20-45 2.2
CTB9018 900 1800 <35 3-0 40-60 3
CTB9021 900 2100 <35 3-0 45-60 3
CTB9024 900 2400 <28 3-0 45-70 4
CTB1018 1050 1800 <20 3-0 50-75 5.5
CTB1021 1050 2100 <20 3-0 50-100 5.5
CTB1024 1050 2400 <20 3-0 60-120 5.5
CTB1218 1200 1800 <18 3-0 80-140 5.5
CTB1224 1200 2400 <18 3-0 85-180 7.5
CTB1230 1200 3000 <18 3-0 100-180 7.5
CTB1530 1500 3000 <14 3-0 170-280 11
