Overview

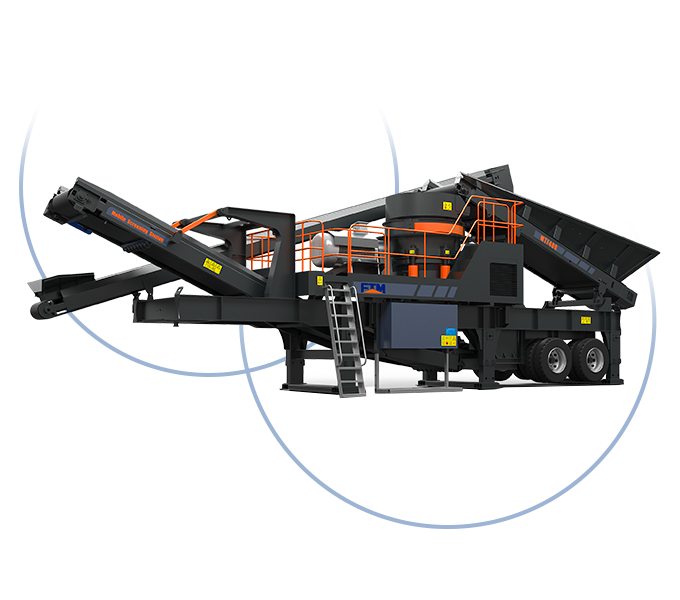

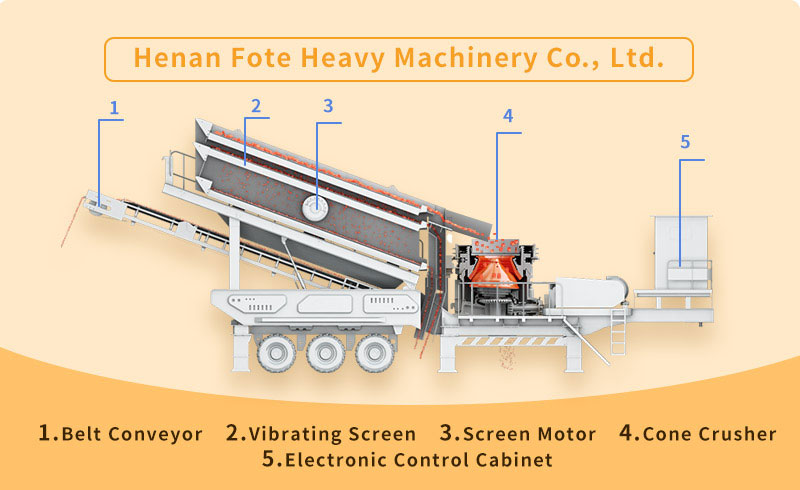

The mobile crushing plant is mainly divided into the crawler-type and the wheeled one according to different mobile devices. It is composed of a crusher, a feeder, a feeding hopper, a built-in belt conveyor and a driving and control system, which are installed on the mobile chassis.

gallery

- Applicable Materials:

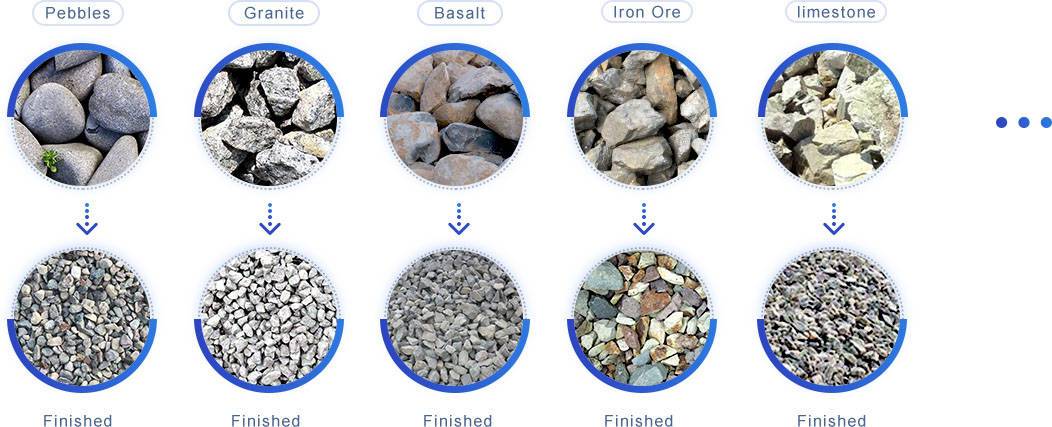

The mobile crushing plant is suitable for processing construction waste, basalt, granite, fly ash, cement clinker, river pebble, limestone, iron ore, bauxite, quartz sand, coal gangue, and other materials.

Working principle

The mobile crusher can adopt the “first crushing and then screening” process, or the “first screening and then crushing” process. Since it is quite flexible, the crushing station can be combined into a two-stage screening system of coarse crushing and fine crushing according to actual needs, or a three-stage system of coarse, medium and fine crushing. It can be used in large stone yards where the materials are first crushed in the yard and then transported. The reliability is greatly enhanced especially when the material is transported by a belt conveyor and a transfer bin; therefore, it is a relatively reliable and economical method of stone crushing and transportation.

The operation of combined mobile crushing plants

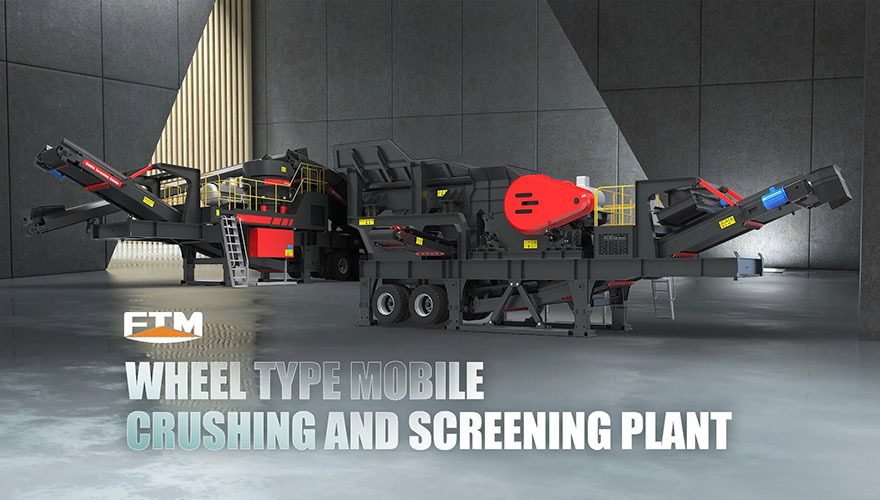

The multi-stage combined mobile crushing station is a good choice for small and medium production demands, frequently moved working environment and independent stone production according to customer's demands. It mainly consists of a vibrating screen, the jaw crusher, the cone crusher and the impact crusher according to coarse crushing, medium crushing or fine crushing. The diversified secondary crushing station can load, transport and screen materials by itself and completes the operation in an all-around way. At the same time, according to different requirements of customers and various conditions of operating sites, we can provide a complete set of solutions, and optimize the combination of various crushers, screens and conveyors.

Advantages

1. The primary and secondary crushing equipment is matched properly. The whole production line features discharging smoothly, reliable and convenient operation, high efficiency and saving energy.

2. With great maneuverability, it can be extended with the warehouse of raw materials or construction sites, and make various combinations to meet requirements of different materials.

3. The crushing plant enjoys the characteristics of large feeding size, high crushing ratio, simple process, low operating cost and simple maintenance.

4. The crushing plant can be customized according to different requirements. Without the fixed concrete foundation, it reduces the period and costs in use and can be put into use quickly. In addition, given no restriction from the site, it can be pulled to the mine at any time where the materials need crushing.

price

The price of the mobile crushing plant varies with the configuration, model and your actual needs.

FTM Machinery can offer price cuts in different degrees in light of the money the user purchases with the equipment. We guarantee that you will get superior products and high-quality services at a reasonable price.

case

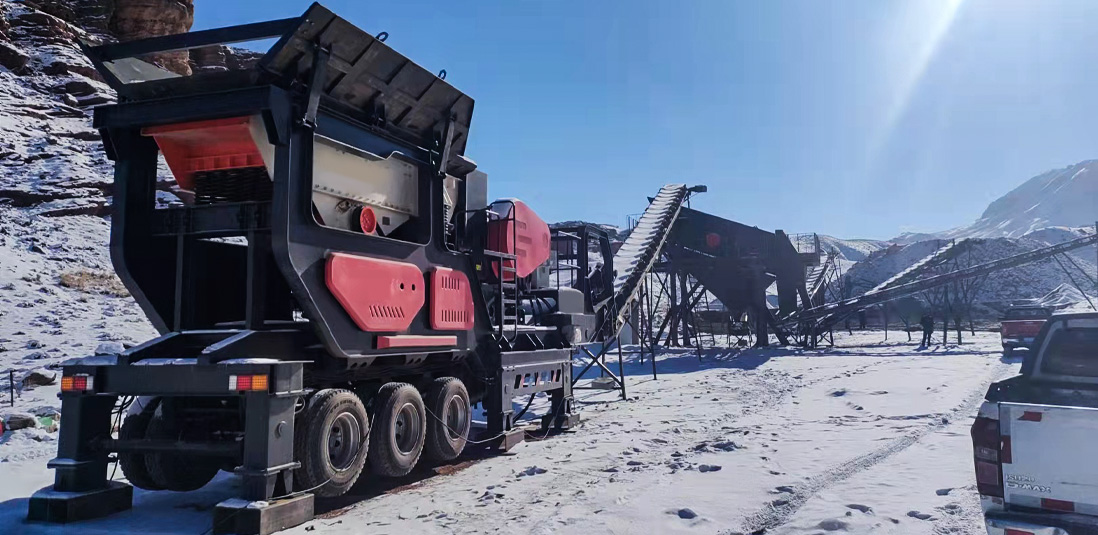

- 1.The production line of granite crushing

granite
Capacity: 200 t/h
- a wheeled jaw crushing plant - a wheeled impact crushing plant
The production line is stable and effective, simple to maintain. It cuts a lot of transportation costs and time for us. So we are very satisfied that the 15% of the cost saved is turned into profit.

Specifications

  • Mobile Jaw Crusher
  • Mobile Impact Crusher
  • Mobile Cone Crusher
  • Mobile Screening Plant
  • Mobile Sand Making Plant
  • Mobile Impact Crush Screen Plant
Model FTM938HD86 FTM1149HD98 FTM1349HD110 FTM1349HD125
Transportation lenght(mm) 12600 13500 14500 15200
Transportation Width(mm) 2600 2700 2800 2900
Transportation Height(mm) 3870 4200 4450 4500
Maximum Lenght(mm) 12500 14000 16100 16700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65
Tire Configuration 并装双轴 并装三轴 并装三轴 并装三轴
Jaw Crusher HD86 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge opening range 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibrating Feeder ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Conveyor B800×8.5m B1000×9.5m B1000×11m B1200×11m
Side-opening Belt conveyor(optional) B500×3m B650×3.5m B650×4m B650×4m
Gensrt(optional) 200KW 250KW 270KW 400KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12
Model FTM938F1210 FTM938F1214 FTM1149F1315 FTM938F1110 FTM1349F1315
Transportation length(mm) 12000 12000 13900 15450 15450
Transportation Width(mm) 2550 2550 2900 2950 2950
Transportation Height(mm) 3900 3900 4450 4500 4500
Maximum length(mm) 12500 12500 13900 15450 15450
Maximum Width(mm) 3250 3260 3250 3250 3250
Maximum Height(mm) 5100 5200 5200 5200 5200
Weight(t) 39 44 54 62 62
Impact crusher PE-1210 PE-1214 PF-1315 HD1110 HD1315
Maximum Feeding Size(mm) 350 350 500 400 700
Capacity(t/h) 70-130 100-180 130-250 112 280
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900 ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M B800×11M B1200×11M
Side-opening Belt conveyor(optional) B500×3.2m B500×3.2m B650×4m B650×4m B650×4m
Gensrt(optional) 320KW 320KW 400KW 320KW 440KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-8 RCYD(C)-12
Model FTM3S185GYS300 FTM3S216GYS400 FTM3S216HP300
Transportation length(mm) 14500 15000 16000
Transportation Width(mm) 3000 3000 4550
Transportation Height(mm) 4400 4500 4600
Maximum Length(mm) 17000 16000 17000
Maximum Width(mm) 3400 3900 6900
Maximum Height(mm) 5800 6500 4700
Weight(t) 34.5 49.5 41
Tire Configuration 并装双轴 并装三轴 并装三轴
Cone crusher GYS300 GYS400 HP300
Discharging belt Conveyor B650×15M×2 B800×15M×2 B800×15M×2
Return belt conveyor B650×14M B800×14M B800×16M
CONveyor Belt For Final Products B500×15M B800×6M B650×15M×2
Under Virbrating Screen B800×7M B800×8M B800×9M
Vibrating Screen 3YK1854 3YK2160 3YK2160
Model FTM3S1848 FTM3S1860 FTM3S2160
Transportation length(mm) 10280 11480 11480
Transportation Width(mm) 2830 2830 3150
Transportation Height(mm) 4350 4350 4350
Maximum Length(mm) 11100 11800 11800
Maximum Width(mm) 3600 3600 3970
Maximum Height(mm) 6000 6000 6500
Weight(t) 16 18 19
Tire Configuration 并装双轴 并装双轴 并装双轴
Vibrating Screen 3YZS1848 3YZS1860 3YZS2160
Model FTM3S1848V08 FTM3S1860V09 FTM3S2160V103
Transportation length(mm) 13500 15600 15600
Transportation Width(mm) 2830 2830 3100
Transportation Height(mm) 4350 4350 4480
Maximum Length(mm) 14650 16300 16300
Maximum Width(mm) 3900 3900 3900
Maximum Height(mm) 5980 6400 6550
Weight(t) 31 36 49
Tire Configuration Biax Fitted Biax Fitted Biax Fitted
Sand maker HVI0815 HVI0922 HVI1032
Discharging Belt Conveyor B800×2.2M B800×2.5M B1000×2.5M
Belt under vibrating screen B800×7M B800×8M B1000×8M
Vibrating Screen 3YZS1848 3YZS1860 3YZS2160
Model FTM3S184F210 FTM3S185F214 FTM3S216F315 FTM3S184HD1110 FTM3S216HD1315
Transportation lenght(mm) 14600 15000 16000 16000 16000
Transportation Width(mm) 2800 2900 3100 3100 3100
Transportation Height(mm) 4400 4400 4550 4400 4550
Maximum Lenght(mm) 16000 16000 17000 16500 17000
Maximum Width(mm) 3800 3900 4600 3900 4600
Maximum Height(mm) 6500 6500 6900 6800 6900
Weight(t) 35 41.5 54 42 48.5
Tire Configuration 并装双轴 并装双轴 并装三轴 并装三轴 并装三轴
Impact Crusher PF1210 PF1214 PF1315 HD1110 HD1315
Feeding belt conveyor B650×15M×2 B800×15M×2 B1000×15M×2 B800×15M×2 B1000×15M×2
Return belt conveyor B650×14M B800×14M B1000×16M B800×16M B1000×16M
Conveyor Belt For Final Product B500×15M×2 B500×15M×2 B650×15M×2 B500×15M×2 B650×15M×2
Under Vibrating Screen B800×7.5M B800×7.5M B1000×9M B800×8M B1000×9M
Vibrating Screen Model 3YZS1848 3YZS1854 3YZS2160 3YZS1848 3YZS2160
