Raymond Mill
MADE IN CHINA
Direct delivery from many ports, please consult.

Email us ( inquiry@sinoftm.com ) , we will reply to you within 24 hours.

get quote

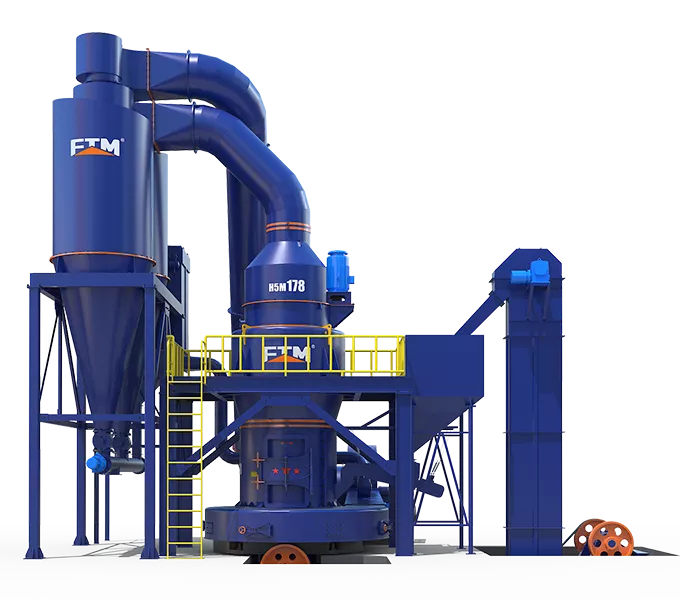

Overview

Raymond Mill is a kind of powder grinding machine with air inlet, air outlet and a feeding port in the middle part. It is suitable for all kinds of pulverized coal making and mineral powder grinding. Compared with the ball mill, it has higher efficiency, lower power consumption, a smaller area and less investment.

gallery

What it is applied to

Raymond mill is suitable for inflammable or nonexplosive materials whose Mohs scale of mineral hardness is lower than 9.3 and humidity is below 6%, such as barite, calcite, potassium feldspar, limestone, talc, white stone, gypsum, etc. in addition, it also can be applied to calcium carbonate crushing and processing, gypsum powder processing, power plant desulfurization, non-metallic mineral powder, coal powder making, etc., and its product size can be arbitrarily adjusted within the range of 40-400 mesh.

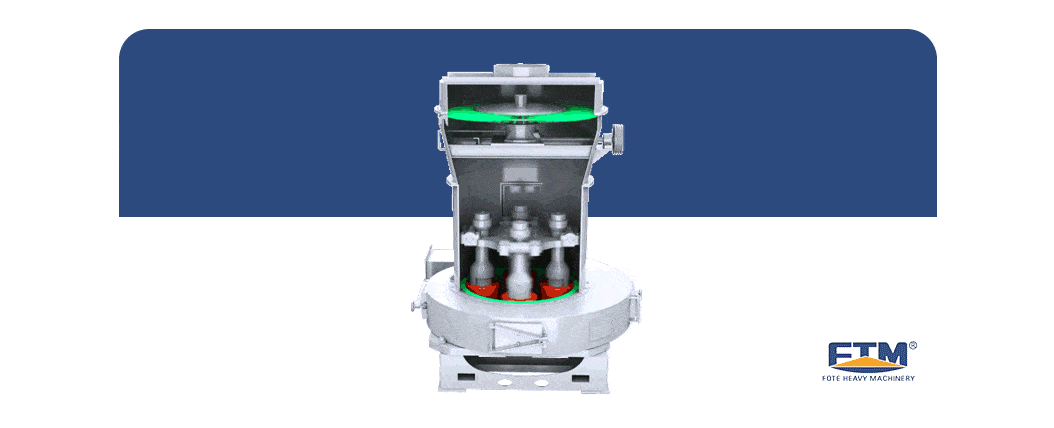

How it works

When the machine begins to run, the transmitting device drives the central shaft to rotate. The material to be ground enters the machine from the feeding hole on the side of the hood. The plum blossom frame at the upper end of the shaft is connected with the grinding roller device on the frame to form a fulcrum, and the lower end of the frame is equipped with a blade system. Due to the centrifugal force casued by the rotating process, the grinding roller that is on the grinding ring swings out, so that the blade sends the material to the gap between the roller and the ring, achieving the purpose of grinding the material by the grinding roller.

Advantages

  • It is suitable for non-metallic ore, and its products are finer.

  • It has a reasonable structure and a small area, and it can independently complete a production line.

  • Raymond mill is eco-friendly for it causes no pollution and low energy consumption.

  • The transmitting device adopts a sealed gear box and the pulley, ensuring stable transmission and reliable operation.

  • Its screening rate can be up to 99%.

  • The wearing parts are made of high manganese steel, providing long service life.

price

The price of Raymond mill varies with its specifications and manufacturing costs.

According to users’ investment on the equipment, FTM Machinery offers different price cuts to you. If you want to know the detailed price, please click the online consultation.

case

- The powder grinding production line

potassium feldspar
Capacity: 450 t/h
- a jaw crusher - a Raymond mill- some vibrating screen
We are very satisfied with the production line for it is well equipped and its process is simple but advanced. More importantly, FTM Machinery equipped us with an automatic alarm system and a fault detection system to effectively ensure safety and stability.

Specifications

Model 4525 4119
Feeding Size(mm) ≤30 ≤25
Output Size(mm) 0.173-0.044 0.173-0.044
Shift Output of Different Material Fineness(t) 16-176 8-78
Rotation Speed of Central Shaft(r/min) 82 105
Ring Diameter(mm) 1770 1400
Roller Diameter(mm) 450 410
Roller Height(mm) 250 190
Main Motor(kw) Y315M-4-132 Y280S-4-75
Fan Motor Y315M-4-132 Y280S-4-75
Analyzer Motor YCT250-4A-18.5 YCT200-4B-7.5
