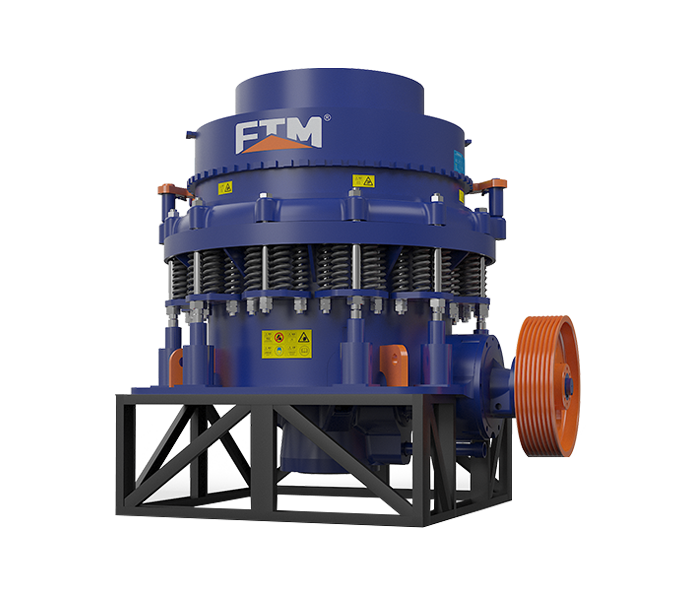

Spring Cone Crusher
MADE IN CHINA
Direct delivery from many ports, please consult.

Email us ( inquiry@sinoftm.com ) , we will reply to you within 24 hours.

get quote

Overview

The spring cone crusher is developed based on the performance of various cone crushers with internationally-advanced level in the 1980s.

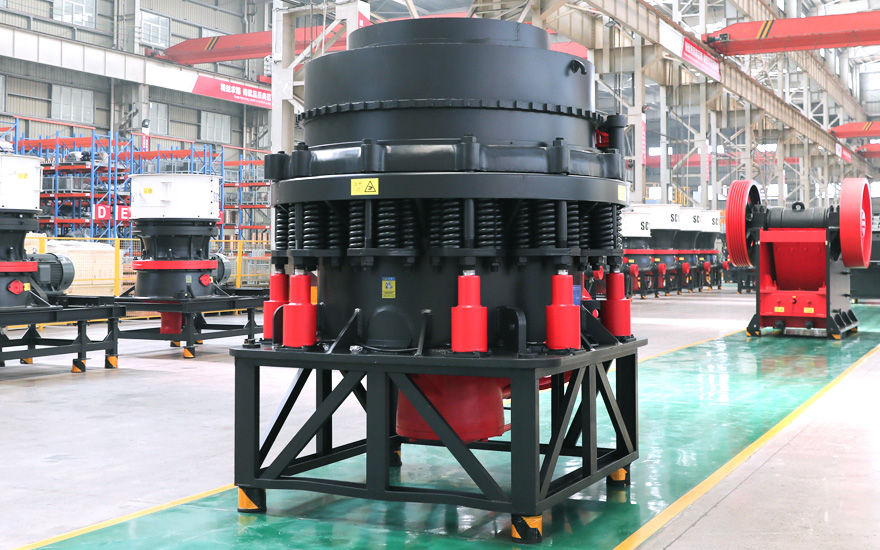

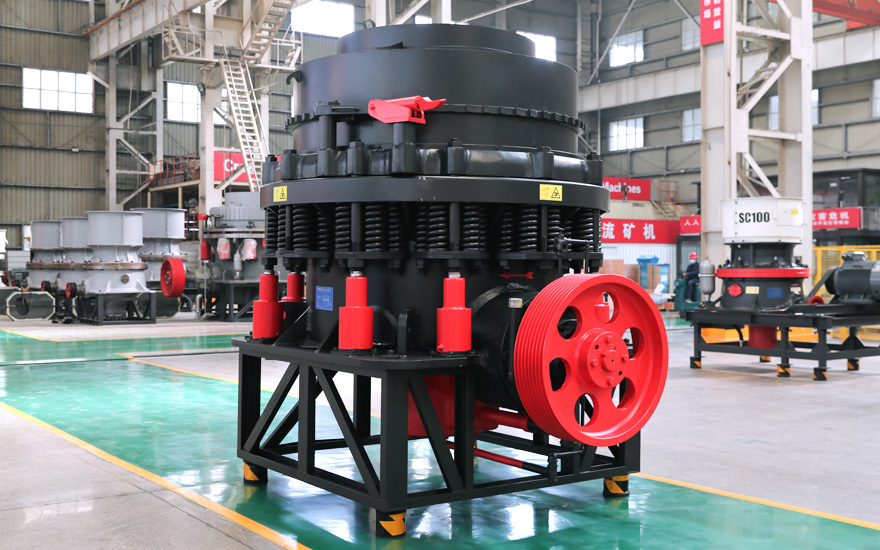

gallery

- Applicable Materials:

The spring cone crusher is generally used for finely and ultra-finely crushing rocks, ores, slag, refractory materials with medium or high hardness, such as iron ore, copper ore, limestone, quartz, granite, basalt and diabase. The final products’ granularity can be adjusted according to your actual needs to achieve the best results.

How it works

When the spring cone crusher begins to run, the motor drives the large cone gear at the bottom of the eccentric sleeve through the hydraulic coupling and the small cone gear to rotate the eccentric sleeve, causing the cone to swing and crush. Since the main shaft does not move and the eccentric sleeve transmits the crushing force, the machine that can bear large crushing force is very suitable for fine and ultra-fine crushing.

Performance

  • Thanks to the spring protection and safety devices, its downtime is greatly reduced.

  • The machine is made of cast steel structure and its reinforced ribs are set at the heavy load parts.

  • It can quickly adjust the size of the crushed material due to the adjuster.

  • Owing to a complete lubrication system, it can automatically shut down in case of too high temperature or too slow flow rate.

  • The internal structure has good sealing performance so that it can effectively protect the equipment from dust or other small particles.

  • The hydraulic motor takes the place of the hydraulic push rod and the ore discharge port is accurately adjusted; therefore, the fixed cone assembly can be removed in 10 minutes.

price

There are many factors influencing the price of stone crushers such as specifications, quality, regions, market demands and so on.

As a direct seller of mining machines, FTM Machinery sells the stone crusher at the ex-factory price, lower than the market price. In addition, we often offer some big price cuts to benefit more and more customers. All customers are welcome to inquire about the price online or to visit our factories at any time.

case

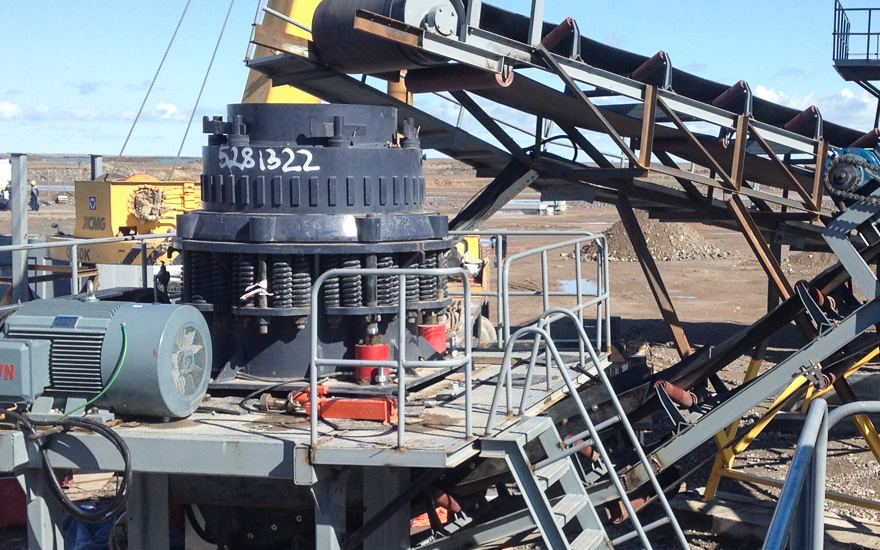

- The aggregate production line

aluminum ore
Capacity: 650 t/h
- the spring cone crusher - the VSI sand maker - the vibrating screen- some belt conveyors
The sandstone aggregate production line introduced by Fote Machinery has reasonable layout and process flow, and its conveying lines are smooth and flexible. The finished products can meet engineering needs in quantity, quality and strength so the line has become our main sand aggregate production line.

Specifications

Specification Model Diameter
of large
end of
crushing
cone
(mm)
Max.feeding
size(mm)
Width of
discharge
opening
(mm)
Processing
capacity
(t/h)
Motor
power
(kw)
Total
weight
(t)
Dimensions
(L×W×H)
(mm)
Φ600 PYB600 600 65 12-25 40 8P   30 5 2234×1370×1675
PYD600 35 3-13 12-23 5.5 2234×1370×1675
Φ900 PYB900 900 115 15-50 50-90 8P   55 11.2 2692×1640×2350
PYZ900 60 5-20 20-65 11.2 2692×1640×2350
PYD900 50 3-13 15-50 11.3 2692×1640×2350
Φ1200 PYB1200 1200 145 20-50 110-168 8P   110 24.7 2790×1878×2844
PYZ1200 100 8-25 42-135 25 2790×1878×2844
PYD1200 50 3-15 18-105 25.3 2790×1878×2844
Φ1750 PYB1750 1750 215 25-50 180-360 8P   160 50.3 3910×2894×3809
PYZ1750 185 10-30 80-210 50.3 3910×2894×3809
PYD1750 85 5-13 60-180 50.2 3910×2894×3809
Φ2200 PYB2200 2200 300 30-60 420-700 8P   280-260 80 4622×3302×4470
PYZ2200 230 10-30 130-410 80 4622×3302×4470
PYD2200 100 5-15 80-200 81.4 4622×3302×4470
