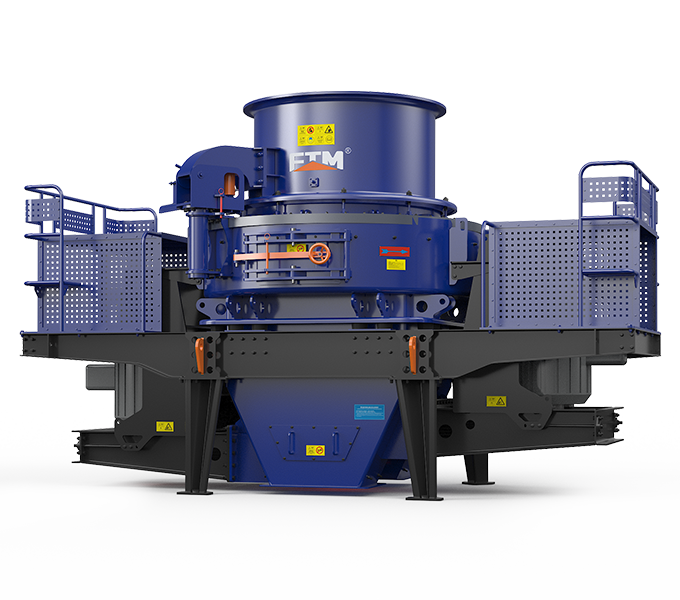

Sand Making Machine
MADE IN CHINA
Direct delivery from many ports, please consult.

Email us ( inquiry@sinoftm.com ) , we will reply to you within 24 hours.

get quote

Overview

The sand making machine has become the main equipment in sand making industry up to now and been sold to many countries and regions around the world, such as Spain, Germany, Australia, India, Pakistan, Sri Lanka, Vietnam, the Philippines, Ethiopia, Kenya, Nigeria, Iran, etc.

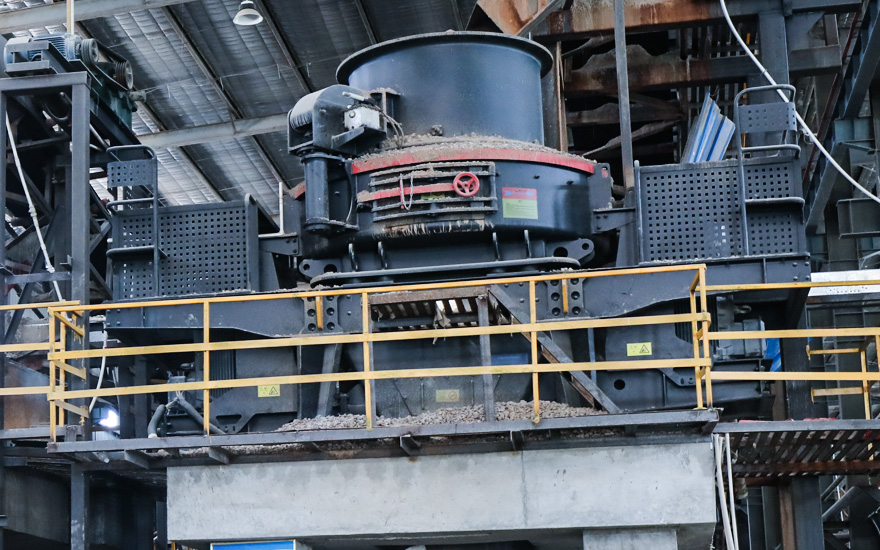

gallery

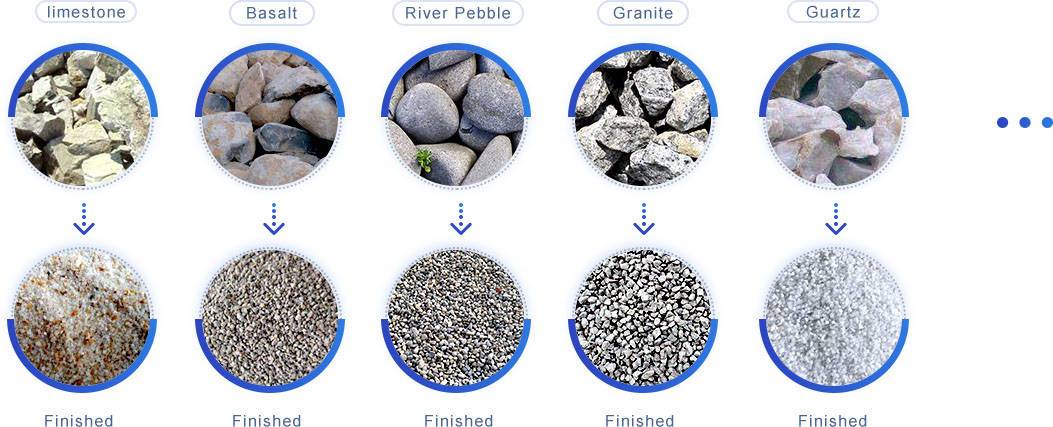

- Applicable Materials:

limestone, basalt, river pebble, granite, quartz, iron ore, diabase, etc.

Working principle

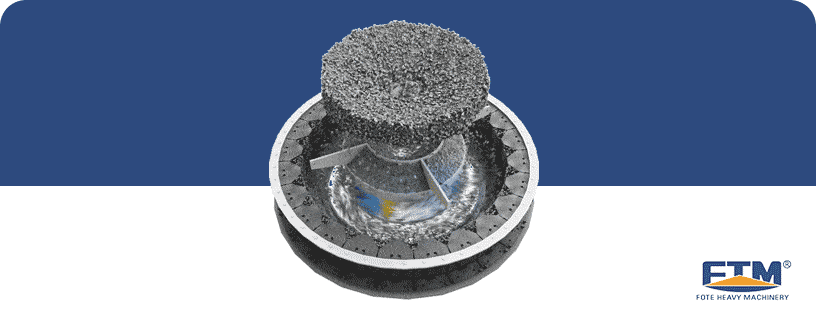

After entering the sand making machine from the feeding hopper, the material is divided into two portions by the feeder. A large portion of the materials enters the impeller that rotates at a high speed, and is thrown at a speed of 60-70 m/s from three channels of the impeller under the action of high-speed centrifugal force. Then they hit the other portion of the materials falling from the periphery of the feeder and are crushed. After that, the materials are thrown onto the material lining of the vortex cavity, obliquely rebound upward to the top of the vortex chamber, and then deflect down into the channel of the impeller. Finally, they are discharged from the channels of the impeller. All the materials are subject to impact, friction, grinding and crushing in the vortex chamber two or more times.

Advantage

  • Low cost

    The Reasonable and simple structure cuts costs in the operation.

  • Shaping function

    The machine has functions of fine crushing, coarse grinding and shaping, contributing to high crushing efficiency.

  • A Wide range of materials

    It is suitable for crushing materials with medium and high hardness. In addition, it is rarely affected by wet materials and the moisture content can reach 8%.

  • Energy-saving and Eco-friendly

    The sand maker produces little dust pollution and the noise of less than 75 decibels when in use.

Classification

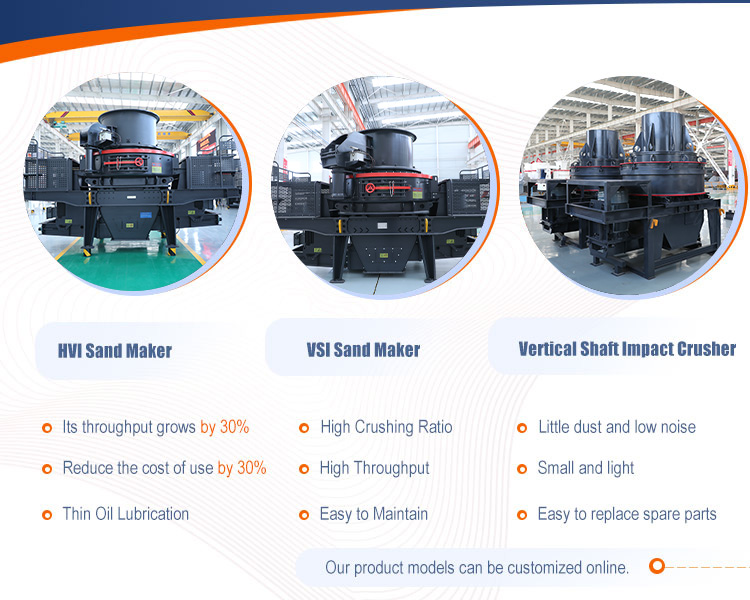

Fote has produced three kinds of sand makers, that is, HVI impact sand makers, vertical shaft impact crushers and VSI sand makers.

I. The HVI impact sand maker has two functions of sand making and shaping. Compared with other machines, its better shaping effect increases the throughput by 30%.

II. The vertical shaft impact crusher is the essential equipment for construction, mining, metallurgy, highway and railway construction, bridge, hydropower, mineral grinding and artificial sand making industry at home and abroad.

III. The VSI sand maker provides high-quality sand and gravel aggregates for road and railway construction, high-rise buildings construction, municipal engineering and hydropower dam construction, concrete mixing stations, and others.

price

With 40 years of experience, FTM Machinery has been in line with market demands and improved product quality and technology for many times.

Our sand making machine has the advantages of uniform particle size, low energy consumption and stable operation. As is known to all, the price of the sand making machine varies with model, materials and technology. All customers are welcome to consult the price online or to visit our factories at any time.

case

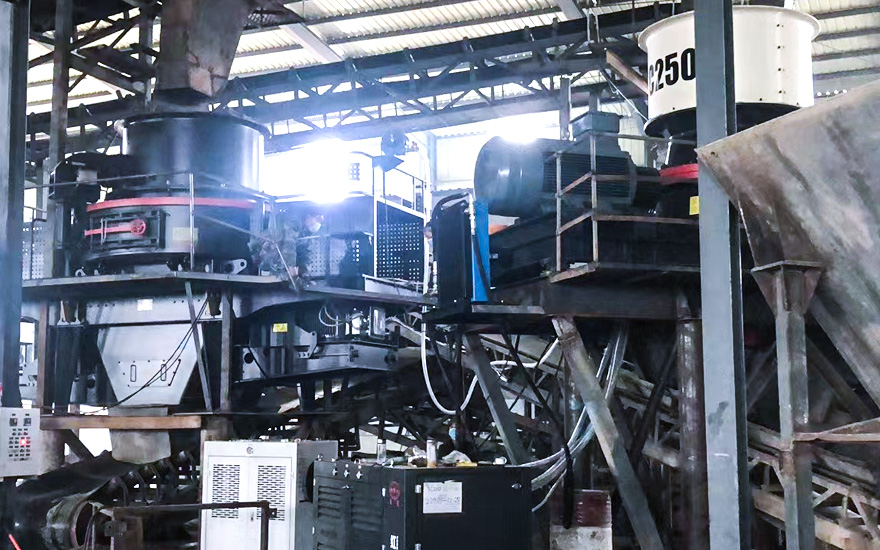

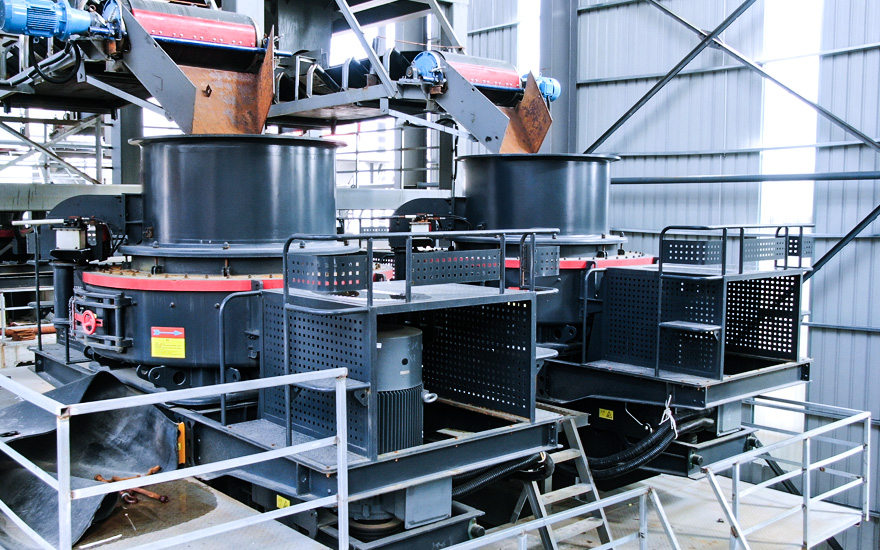

- The production line of sand making in Indonesia

granite
Capacity: 200 t/h
- a SC160 cone crusher - a HVI1250 sand maker - two 3020 sand washers - a 2YK2460 vibrating screen - some belt conveyors
I am very satisfied with the line designed by FTM Machinery. It is well-equipped, safe and cost-effective, and also has a low failure rate and low costs. And its price is very convincing.

Specifications

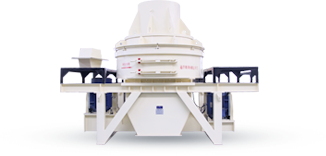

  • HX Sand Making Machine

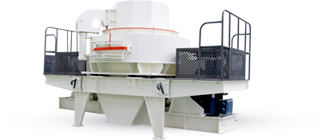

  • VSI Sand Making Machine

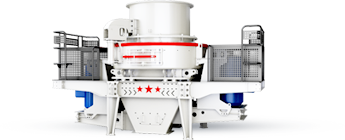

  • HVI Sand Making Machine
Model
specification
Max.feeding
size
(mm)
Power
(kw)
Rotation
speed of
impeller
(r/min)
Capacity
(t/h)
Overall
dimension
(L×W×H)
(mm)
FTM-06 35 2P   37-55KW 2000-3000 12-30 2500×1620×2600
FTM-07 45 4P   55-75KW 1500-2500 25-55 2700×1760×2800
FTM-09 50 4P   110-150KW 1200-2000 55-100 3900×2000×3070
FTM-10 60 4P   150-180KW 1000-1700 100-160 4600×2350×3450
Model Hard material Soft material Sand Shaping Sand Making Motor Power(kw)
Max.Feeding Size (mm) Throughput(t/h)
HVI 0815  <30 <35  50-140  90-230  2×75
HVI 0818 <30 <35 60-190 110-283 2×90
HVI 0922 <35 <40 70-210 150-330 2×110
HVI 0926 <35 <40 85-240 170-380 2×132
HVI 1032 <40 <45 130-278 180-356 2×160
HVI 1040 <40 <45 180-284 250-440 2×200
HVI 1263 <50 <55 320-498 370-585 2×315
Model VSI 7611 VSI 8518 VSI 9526 VSI 1140 VSI 1145 VSI 1150
Capacity
(t/h)
Feed both at center and sides 80-180 140-260 200-380 300-520 350-610 360-650
Feed at center 40-90 70-130 100-190 160-260 180-355 190-365
Max.feeding size
(mm)
Soft material 35 40 45 50 50 50
Hard material 30 35 40 40 45 45
Rotation speed(r/min) 1700-1890 1520-1690 1360-1510 1150-1300 1150-1300 1150-1300
Motor power(kw) 4P   110 4P   180 4P   264 4P   400 4P   440 4P   500
Overall dimension(L×W×H)(mm) 4100×2250×2300 4160×2320×2900 4560×2450×2830 5500×2700×3100 5500×2700×3100 5500×2700×3100

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
