Gold Ore Crusher
MADE IN CHINA
Direct delivery from many ports, please consult.

Email us ( inquiry@sinoftm.com ) , we will reply to you within 24 hours.

get quote

Overview

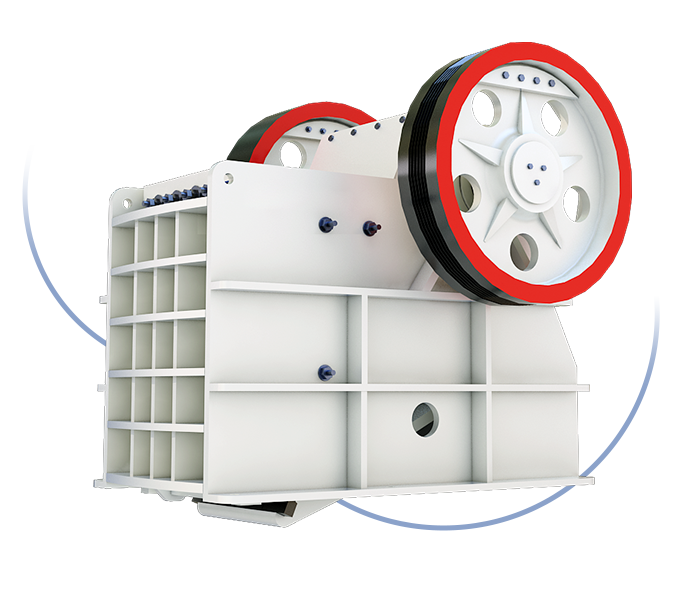

The gold ore crusher is a kind of crushing equipment designed by FTM Machinery based on the combination of its 40 years of crushing industry experience and market demands, featuring a simple structure, high crushing ratio, and reliable quality. It is widely used in mining, metallurgy, chemistry, highway and railway construction and other industries.

It is mainly divided into two series, that is, PE and PEX. The former is used for crushing coarse materials, and the latter for medium and fine materials.

gallery

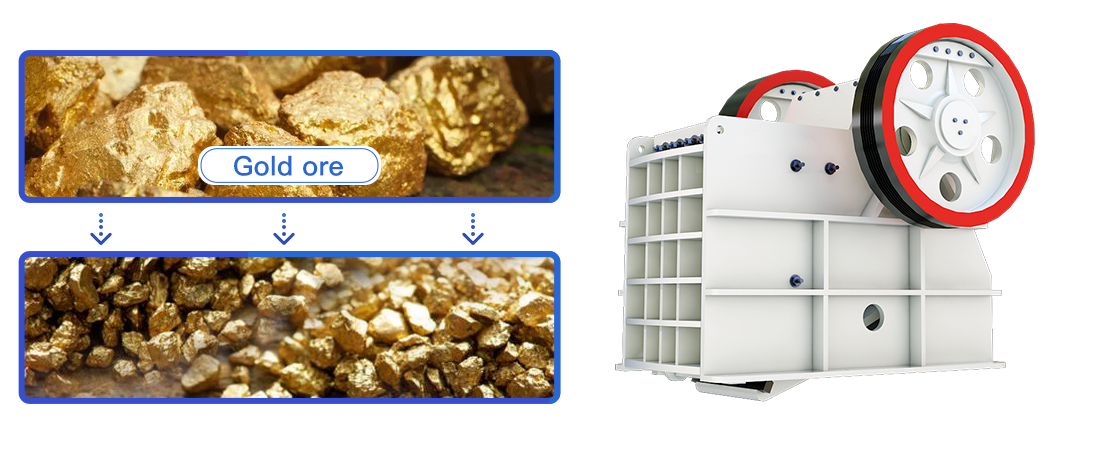

- Applicable Materials:

gold ore, gold stones, gold rocks, gold quartz, etc.

Working principle

The gold ore crusher runs in the way of curved extrusion. The motor drives the belt and the pulley to move the cymbal up and down through the eccentric shaft. When the movable jaw plate goes upward and the angle between the bracket and the plate becomes larger, the movable jaw plate approaches the fixed plate, thus realizing the goal of crushing materials. When the moveable plate goes downward and the angle becomes smaller, the movable jaw leaves the fixed jaw under the action of the pull rod and the spring, and then the crushed materials come out of the lower opening of the crushing chamber.

Characteristics

  • The Unique Design of Flywheel

    Its unique design of flywheel can help reduce vibration and run more smoothly.

  • The Structure of Welded Frame

    The gold ore crusher is reliable and firm for its excellent welded steel frame can help avoid casting defects.

  • Advanced Manufacturing Techniques

    This equipment is designed by adopting advanced manufacturing techniques as well as the highly wear-resistant toothed plate to extend its service life.

  • The Crushing Structure of Deep Chamber

    The V-shaped crushing chamber, which is extremely deep without dead zone, improves its feeding capacity and production with finished products in a uniform size.

price

There are many factors influencing the price of gold ore crushers such as specifications, quality, regions, market demands and so on.

As a direct seller of mining machines, FTM Machinery sells the gold ore crusher at the ex-factory price, lower than the market price. In addition, we often offer some big price cuts to benefit more and more customers. All customers are welcome to inquire about the price online or to visit our factories at any time.

case

- The production line of stone crushing in Nepal

limestone
Capacity: 700-800 t/h
- three vibrating feeders - one PE1200X1500 gold ore crusher - one SC315S cone crusher - two HXHP500 cone crushers - two 2YK3072 vibrating screens - two 3YK3072 vibrating screens - some belt conveyors
The machine has performed quite well with high output, low consumption and few failures since the gold ore crusher was in use. It is energy-saving and eco-friendly. Also, the machine features a high crushing ratio and finished products in a uniform size. It is really a high-profit coarse crushing equipment!

Specifications

  • Jaw Crusher
  • HD German Jaw Crusher
  • CJ Series European Jaw Crusher
Model Feed opening size(mm) Max.Feeding size (mm) Adjustment range of discharge port (mm) Capacity(t/h) Rotation speed of eccentric shaft(r/min) Power (kw) Dimensions(L×W×H) (mm)
PE 150×250 150×250 125 10-40 1-3 268 4P   5.5 760×700×860
PE 200×300 200×300 180 15-50 2-6 260 4P   7.5 915×780×990
PE 200×350 200×350 180 18-60 3-10 276 4P   11 1000×914×1112
PE 250×400 250×400 210 20-70 5-21 300 6P   15 1100×1032×1285
PE 400×600 400×600 340 40-100 16-64 270 6P   30 1623×1736×1615
PE 500×750 500×750 425 50-100 40-110 268 6P   55 1920×1850×1920
PE 600×750 600×750 500 150-200 80-240 268 6P   55 2020×1850×1920
PE 600×900 600×900 500 65-160 50-160 254 6P   55 2530×1900×2340
PE 750×1060 750×1060 630 80-180 110-320 245 8P   110 2680×2380×2785
PE 900×1200 900×1200 750 100-200 220-380 208 8P   110 3470×2876×3330
PE1200×1500 1200×1500 1020 150-350 400-1000 180 8P   160-245 4850×3220×3680
PE1500×1800 1500×1800 1200 220-350 500-1200 180 8P   280-380 5160×3660×4248
PEX 150×750 150×750 120 18-48 8-25 320 4P   15 1170×1575×1030
PEX 250×750 250×750 210 25-60 13-35 320 6P   22 1550×1730×1470
PEX 250×1000 250×1000 210 25-60 16-52 330 6P   30 1580×2006×1390
PEX 250×1200 250×1200 210 25-60 20-61 330 6P   37 1780×2214×1430
PEX 300×1300 300×1300 250 20-90 16-105 300 6P   55 2210×2320×1723

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Feeding opening size(mm) Max.Feeding size (mm) Adjustment range of discharge port(mm) Capacity(t/h) Power(kw) Dimensions L×W×H (mm)
HD72(57) 460×720 425 45-100 50-120 6P   55 2100×1556×1640
HD86(69) 580×860 500 50-150 60-280 8P   75 2200×1754×1810
HD98(751) 680×980 630 75-175 110-410 8P   110 2660×1960×2175
HD110(912) 850×1100 750 100-200 170-550 6P   132 2960×2381×2556
HD125 950×1250 900 125-225 280-750 8P   160 3500×2614×2925

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Maximum Feeding size(mm) Feeding opening size L×W(mm) Adjustment range of discharge port(mm) Capacity(t/h) Power(KW) Dimensions L×W×H(mm)
CJ96 480 930×580 60-175 105-390 4P 90 2850×2270×1950
CJ106 560 1060×700 70-200 150-500 4P 110 3280×2580×2400
CJ120 700 1200×870 70-200 175-610 4P 160 3700×2790×2950
CJ125 760 1250×950 100-250 270-831 4P 160 4230×2780×2960
CJ150 960 1400×1200 125-250 340-880 4P 200 5030×3440×3970
CJ160 960 1600×1200 150-300 430-1145 4P 250 5780×3460×3580
CJ200 1200 2000×1500 175-300 630-1435 6P 400 6600×4030×4400

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
