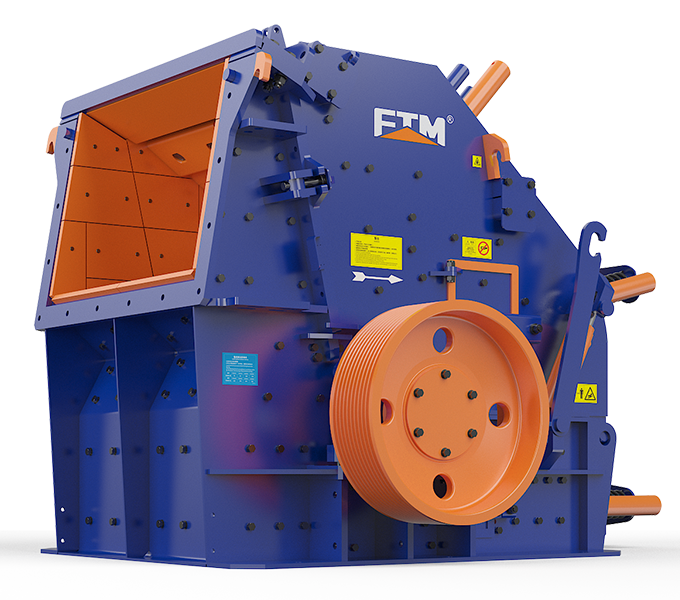

Impact Crusher
MADE IN CHINA
Direct delivery from many ports, please consult.

Email us ( inquiry@sinoftm.com ) , we will reply to you within 24 hours.

get quote

Overview

The impact crusher is mainly divided into two categories: the single-rotor and double-rotor. It features high crushing ratio, high capacity, simple crushing process, low energy consumption, and convenient maintenance and its finished products are cubic in excellent shape without any tension or cracks.

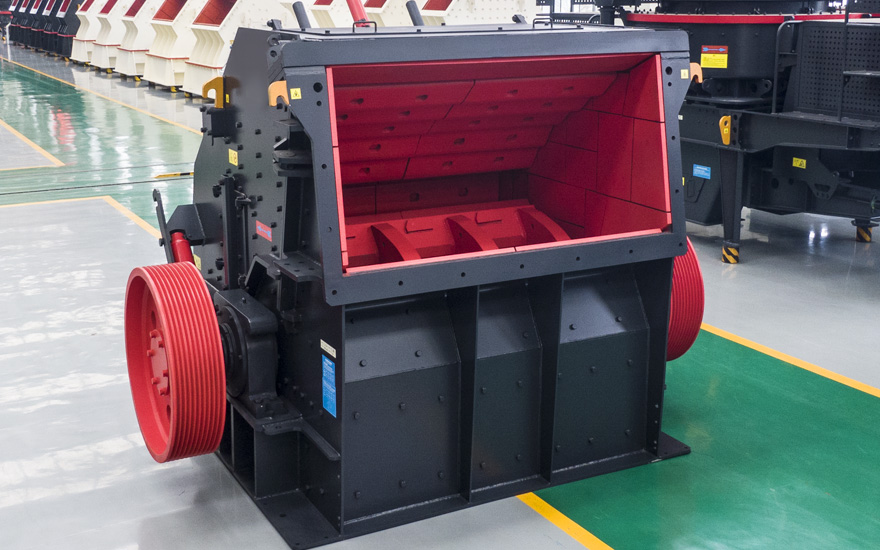

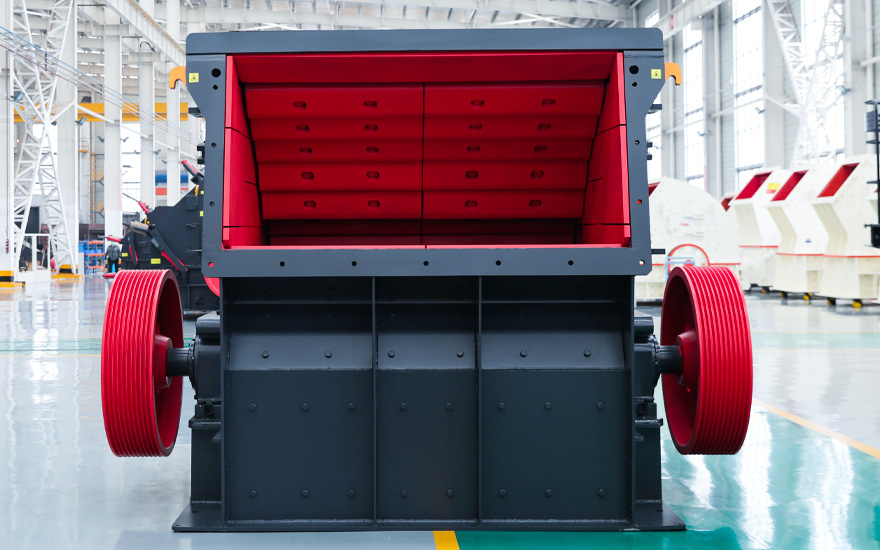

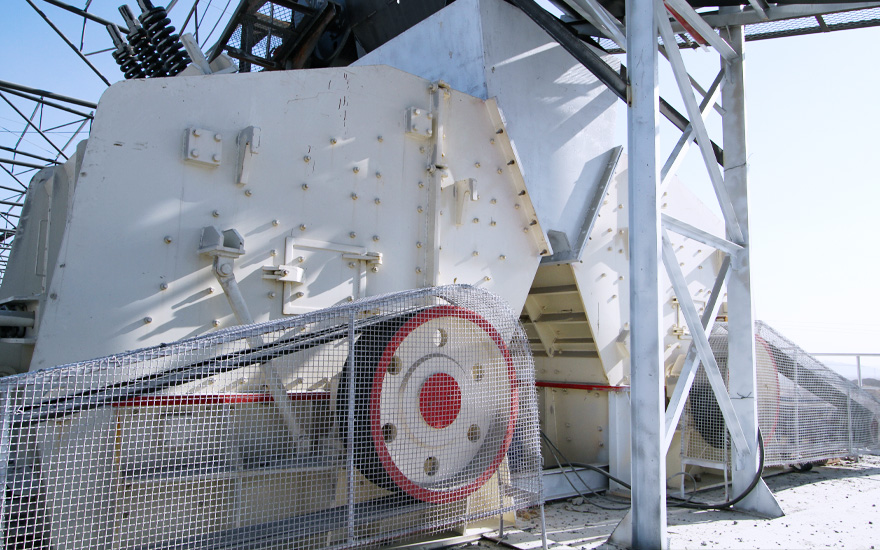

gallery

- Applicable Materials:

limestone, coal gangue, river pebble, granite, concrete, iron ore, etc.

Working principle

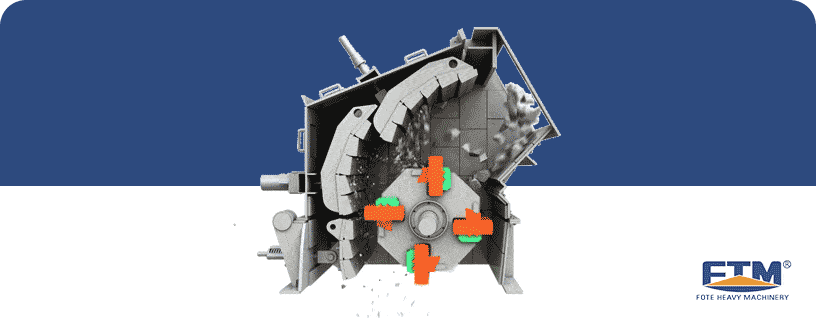

The impact crusher is a mechanical device that uses impact energy to crush materials with medium hardness. The rotor rotates at a high speed under the driving force of the motor, and the ore obtains huge kinetic energy from the process. After entering the action area of the hammer, the materials are hit and crushed by the hammer on the rotor, then thrown at a high speed to the counter-attack device and broken again. Finally, they are rebounded from the impacting liner back to the zone and crushed. This is a repeated process, and the materials are broken in the first, second and third impacting chambers. When crushed into being in required particle size, the materials are discharged from the discharge port. Users can adjust the gap between the counter-rack and the rotor to achieve the goal of changing the materials’ discharging size and shape.

Advantages

  • Cost-effective and Energy-saving

    The impact crusher has a large feeding inlet and a large crushing chamber. It can process those large and high-hardness materials and the finished products have little stone powder.

  • Optimum particle shapes

    The gap between the impacting plate and the hammer can be optionally adjusted to effectively control the discharge granularity, thus producing beautiful finished products in a uniform size.

  • Unique Structure

    The machine is rigid and compact, and its rotor has high inertia.

  • High Comprehensive Effect

    High chrome hammer is resistant to impact and wear and provides large impacting force.

price

There are a lot of factors exerting an influence on the price of the impact crusher such as model, specifications, parameters and processing materials. Therefore, customers should take many factors into account when purchasing an impact crusher with high cost-performance.

Fote’s impact crusher is credited with uniform particle size, low energy consumption, and stable operation. More importantly, it is cheaper than the cone crusher. All customers are welcome to inquire about the product price online or visit our factories for a purchase.

case

- The production line of crushing limestone in Egypt

limestone and bluestone
Capacity: 600 t/h
- a vibrating feeder - a PE 1200×1500 jaw crusher - two PF 1520 impact crushers - 2 4YK3072 vibrating screen - some belt conveyors
Quality is an essential factor when selecting the mining equipment. When I bought the first equipment three years ago, I visited a lot of factories and finally decided to choose Fote. Its machine shows high efficiency and low failure rate. Timely after-sales service and improved production costs make it perfect equipment for our needs.

Specifications

  • Impact Crusher

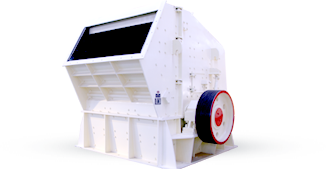

  • HX series impact crusher

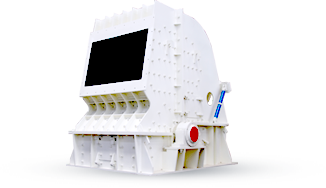

  • HD German impact crusher

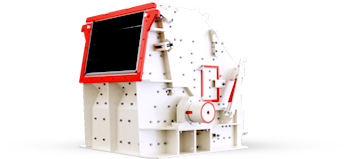

  • CI series impact crusher
Model Specifications (mm) Feed  Opening (mm) Max.Feeding Size (mm) Capacity (t/h) Power (kw) Dimensions(L×W×H) (mm)
PF-1007 Φ1000×700 400×730 300 30-70 4P   37-45 2330×1660×2300
PF-1010 Φ1000×1050 400×1080 350 50-90 4P   45-55 2370×1700×2390
PF-1210 Φ1250×1050 400×1080 350 70-130 6P   110 2680×2160×2800
PF-1214 Φ1250×1400 400×1430 350 80-180 6P   132 2650×2460×2800
PF-1315 Φ1320×1500 860×1520 500 100-280 6P   200 3180×2720×3120
PF-1320 Φ1300×2000 993×2000 500 140-380 6P   250 3220×3100×3120
PF-1520 Φ1500×2000 830×2040 700 200-550 4P   315-400 3959×3564×3330
PF-1820 Φ1800×2000 1260×2040 800 300-800 6P   630-710 4400×3866×4009

FTM Series Counterattack Break Secondary Counterattack Break (Fine Break)

Model Maximum Feeding Size(mm) Crusher weight
Containing hopper(kg)
Power(kw) Processing
capacity(t/h)
FTM100S 300 11380 160 60-210
FTM120S 350 18112 200 80-300
FTM140S 350 29650 400 150-700

FTM Series Counter-break Primary Counter-break (Coarse Break) Applicable to Construction Waste Crushing

Model Maximum Feeding Size(mm) Crusher weight
Containing hopper(kg)
Power(kw) Processing
capacity(t/h)
FTM100P 600 10940 160 60-210
FTM120P 900 17252 200 80-400
FTM140P 1000 27750 315 200-700
Model Rotor
(mm)
The Maximum Feeding Size
(mm)
Capacity
(t/h)
Motor power
(kw)

Overall dimension
(L×W×H)
(mm)

Weight
(kg)
-150MPa -350MPa
HD1110 Φ1040×1000 400 200 90~190 4P   90-132 3000×2360×2385 15875
HD1315 Φ1300×1500 700 300 180~280 4P    200-270 3735×3156×3055 29600
HD1520 Φ1500×2000 1000 400 350~500 4P   400-500 4310×3330×3660 42000
HD1625 Φ1650×2500 1300 500 500~670 4P   500-670 5540×4330×4600 66000
Model Maximum Feeding Size (mm) Power (kw) Capacity (t/h) Dimensions(L×W×H)(mm)
CI1110 250 160 60-210 2826×2087×2285
CI1213 300 200 80-280 2903×2530×2411
CI1316 300 250 100-350 3320×2770×2535
CI1321 300 315 130-430 2955×3285×2585
CI1521 350 2×(200-250) 200-600 3450×3620×2770
Cl1524 350 2×315 240-700 3450×3925×2855
Cl1630 400 710-800 300-900 3693×4520×3173



Model Maximum Feeding Size (mm) Power (kw) Capacity (t/h) Dimensions(L×W×H)(mm)
CI1313 600 200 100-480 2972×2560×2937
CI1415 600 250 120-600 2985×2790×3068
CI1620 800 2×(200-250) 220-900 4261×3480×3780
CI2023 800 2×500 400-2000 5151×4424×4712
